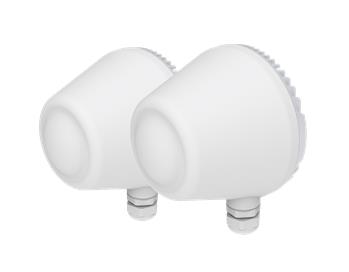

Tachyon TNA-303L-65-LIB, 60 GHz preconfigured PtP link

Tachyon TNA-303L-65-LIB, 60 GHz preconfigured PtP link

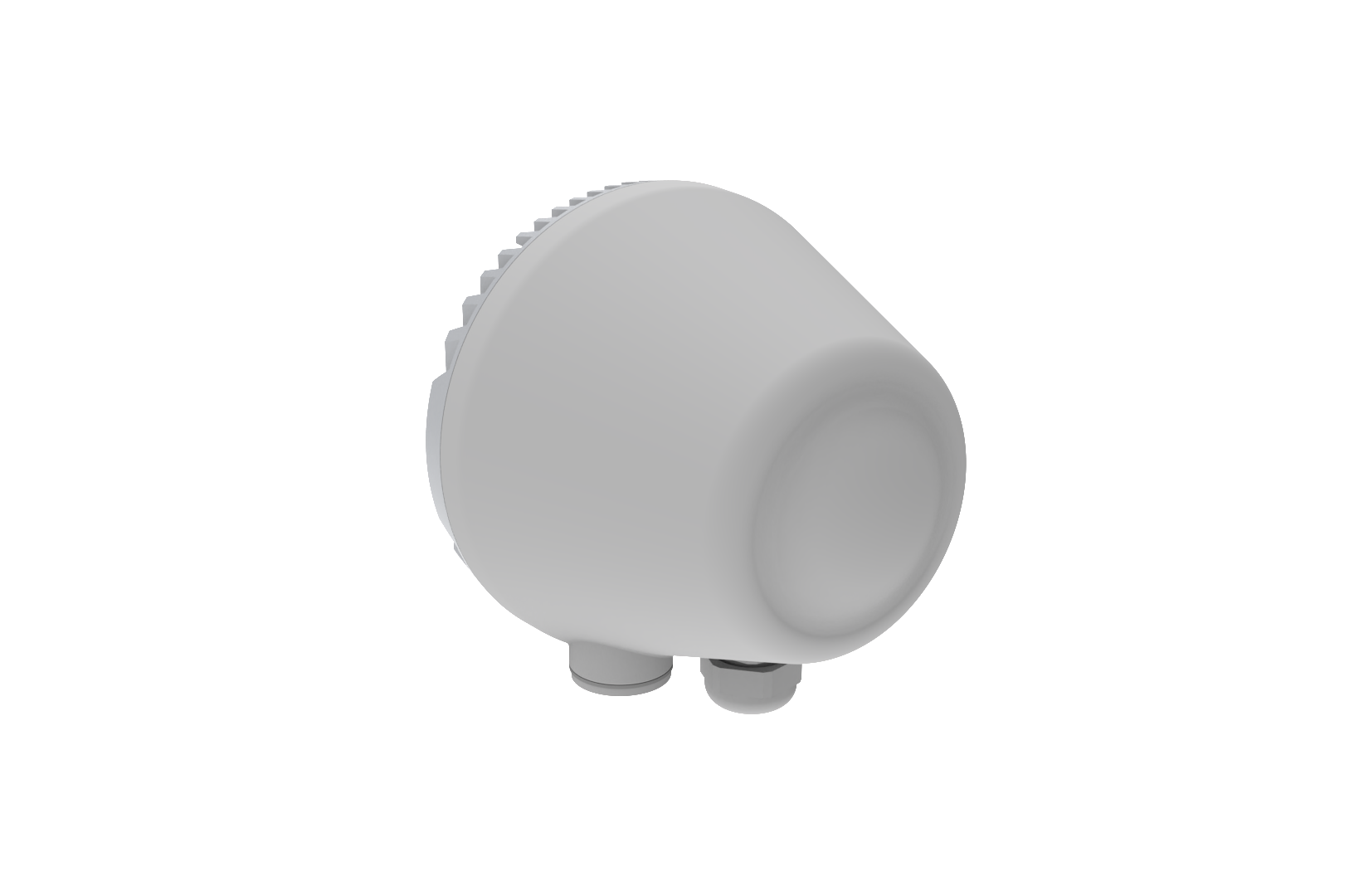

Tachyon TNA-303L-65 is a unique access point to the 60 GHz band with an integrated antenna. It has 1 Poe-in 1GE port and a directional antenna with a 32 dBI profit.More information

Producer

Tachyon Networks

Part No.

TNA-303L-65-LIB

Code

00075250

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

293.87 EUR exc. VAT

VAT

21%

Your price inc. VAT

355.58 EUR inc. VAT

Ask for a better price

Description

The Tachyon TNA-30x series products are high-end PTP and PTMP mmwave radios that operate in the free 60 GHz band. Tachyon Networks is thus able to provide a perfect solution for ISPs who need to deploy multi-gigabit fixed wireless access, as well as for related applications-video surveillance, WiFi backhaul, etc. All this, combined with development and production directly in the EU and other advanced solutions, predisposes the entire system for deployment even in sensitive applications such as CCTV systems, capacitive interconnection of buildings and the like.

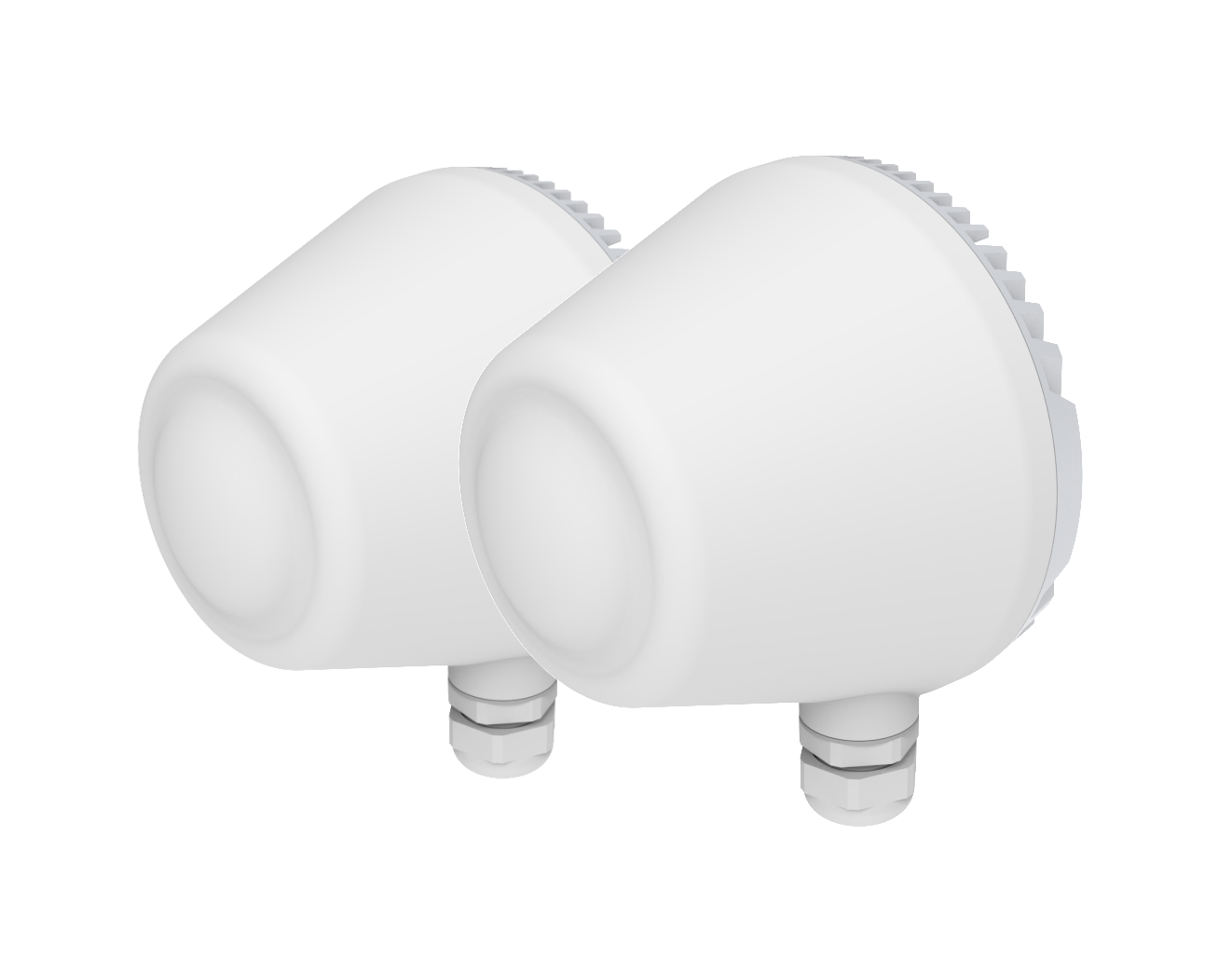

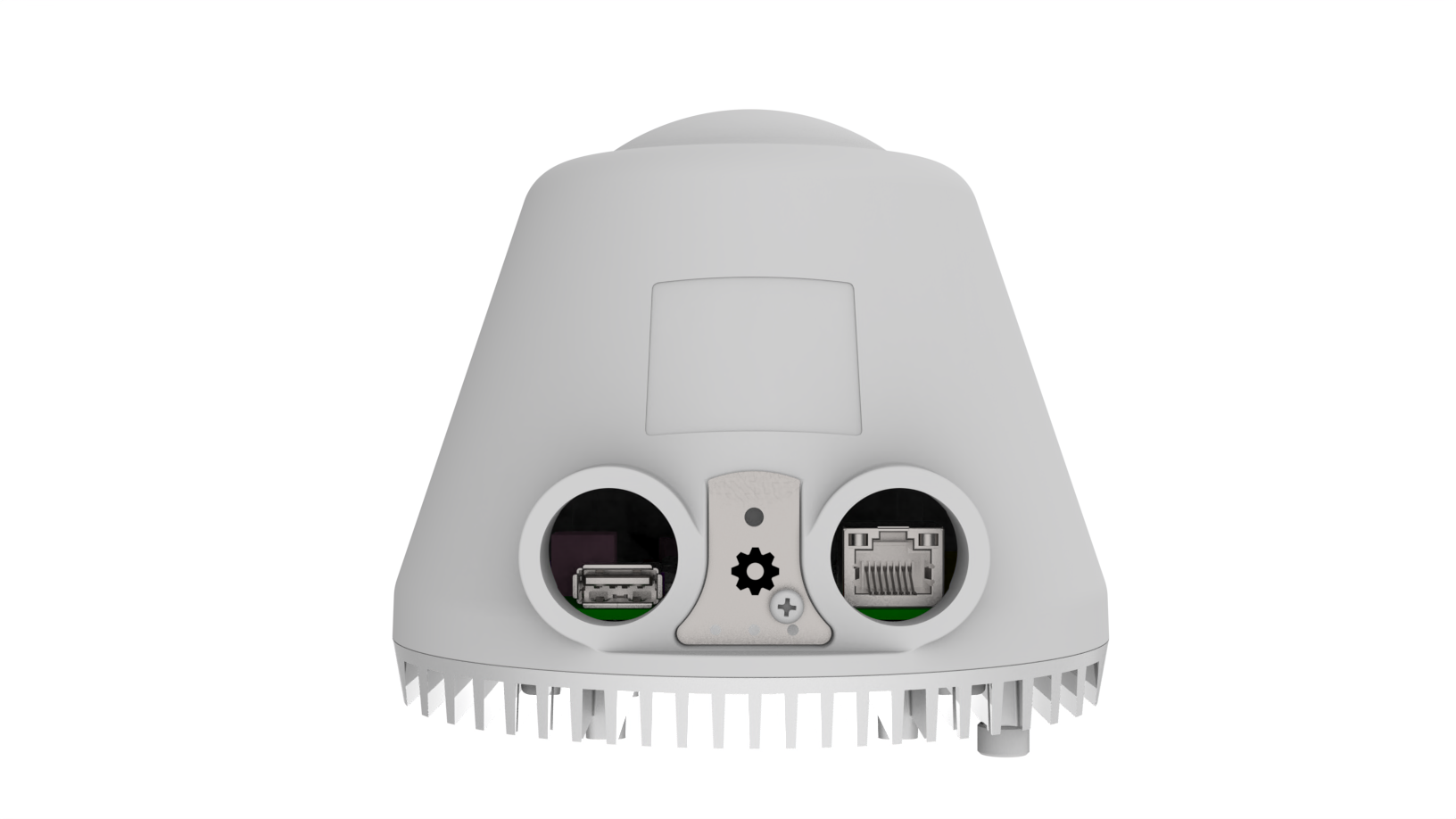

The Tachyon TNA-303L-65-LIB is a set of two TNA-303L-65 pre-configured client units. There is no need to configure anything during installation, just install and direct the units-this creates a transparent wireless connection. There is 1x 1GE RJ45 port with PoE-in support (active and passive) for network connection. There is also a USB-A port for connecting a WiFi dongle for routing.

Other advantages include:

Full 60GHz band support -channels 1-6 (57-71GHz)
Certification according to EN 303 722, i.e. legal use even in the 66-71 GHz range
Transmission capacity more than 2 Gbps
1x GEth PoE-in port
USB port for routing

Package Contents:

2x Tachyon Networks TNA-303L-65 with mounting plate
2x Holder TNA-M-L
2x 48V 0.5A PoE adapter
2x Quick start guide

Parameters

Ethernet parameters
Antenna gain (dBi)	32
Beam angle horizontal (°)	8
Beam angle vertical (°)	8
Local signalling	LED
Max. počet klientů	32
Power consumption (W)	17
Power Supply	PoE
Properties	VLAN, Traffic shaping, DHCP snooping, IPv4, IPv6
LAN port speed	1 Gbps
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	100
Design	Outdoor, Na zeď, Na stožár
Height (mm)	130
Operating Temperature	-30° až +55°C
Počet LAN portů	1
Weight (kg)	425
Width (mm)	120
Wireless parameters
Operating mode	Client, Point-to-point

All parameters Less parameters

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

+420 601 570 595

stejskal@vanco.cz

Products classification

Product question

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

(+420) +420 601 570 595

stejskal@vanco.cz

Downloads3

Datasheet

TNA-303L-65.pdf Format pdf (2 773.5 kB) Download

WebGUI manuál

67000659775-tna-30x-web-ui-manual-v1-10-0- Format -0- (NaN kB) Download

Manuál

67000747395-tna-303l-65-lib-link-in-a-box-operating-manual Format ual (NaN kB) Download
