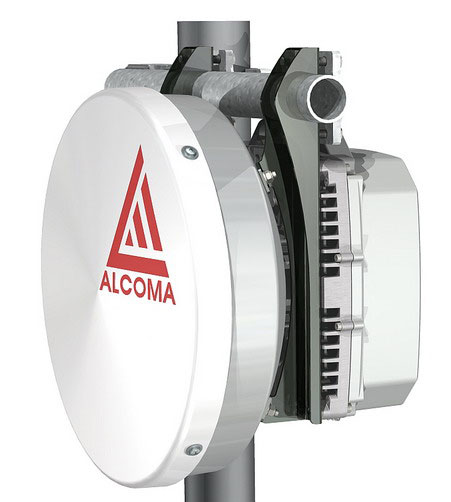

ALCOMA AL10D MP91, 10 GHz, 88 Mbps, incl. 65 cm antennas

Upgrade SW Upgrade: $ 10,000 excluding VAT.

Approximate reach of AL10D   MP91   with 20 dB leakage margin:

• 44 Mbit/s @ 10 km
• 66 Mbit/s @ 6 km
• 90 Mbit/s @ 4 km

Main Features:

• Frequency band: 10 GHz
• Modulation: QPSK/8QAM/16QAM
• Automatic output ATPC output control
• Fully software configuration
• Sturdy and durable construction of both the outdoor unit and the antenna
• High operational reliability and climate resistance
• SQL Database Management

External Unit (ODU)

• The entire joint is only built into external units
• The simply removable ODU is integrated with the antenna in one unit or can be mounted separately and connected by a flexible waveguide
• The ODU and the intrinsically protected/unprotected terminal block are connected by structured cabling S-STP Cat.7 to a length of 100 m
• Frequency control panel with PC frequency setting
• Switching capacity and bandwidth from PC
• Set up PC broadcast performance

Indoor protected terminal box

• 10/100 Mbps Ethernet User Interface and 48V Supply Voltage
• Integrated overvoltage protection
• 19"rack height 1U for 1-3 external units connection

User Interfaces

• Fast Ethernet

Fast Ethernet

• towards the user 1 Fast Ethernet Switcher
• Support Auto negotiation or manual setup
• Flow control
• Auto MDIX
• VLAN support for up to 1536-byte packets

Remote Watch

• The Surveillance System enables real-time surveillance and network management with any topology of up to 1000 stations
• SQL Database Management
• The IP-STACK containing the SNMP protocol is a superstructure over its own surveillance system and allows for heterogeneous network monitoring

You can have this connection on your network for as little as CZK 2,308/month. We also offer the possibility to finance the installment payment without any increase-in the form of 6 monthly installments.

For calculation and design of the connection please contact us. "Inquiry form" here . &Nbsp;
