Product is discard!

Product is never more offered.

Contact product manager please: Ing. Jan Stejskal, stejskal@vanco.cz

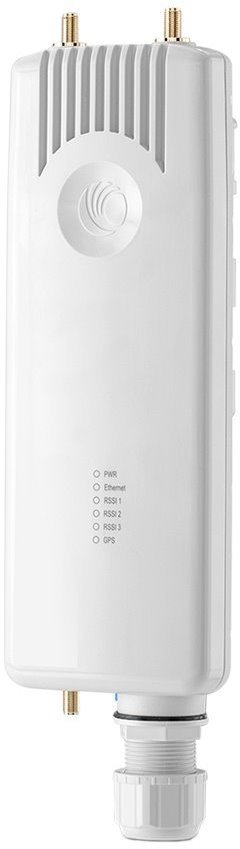

Cambium ePMP 3000L, access point, 5 GHz, 2x2 MIMO
Compare Set Watchdog

Cambium ePMP 3000L, access point, 5 GHz, 2x2 MIMO

The Cambium EPMP 3000L is an access point in the 5 GHz band with an external antenna connection using 2x RP-SMA connectors and the possibility to serve up to 64 attached clients. Thanks to the 20/40/80 MHz and 2x2 MU-MIMO channel width, a total capacity of up to 600 Mbps can be achieved.More information

Producer
  Cambium Networks

Part No.


C050910A223A


Code
 00072729
Warranty
36 Month

    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    Access points and client units of the EPMP series from Cambium Networks are now considered a standard in terms of transmission, resistance to interference and reliability in operating access networks in the 5 GHz band. The EPMP 300/3000 series provides one of the highest permeability on the market to maintain low latency and top interference resistance. All this in a robust version and an extended warranty for 36 months .

    Cambium EPMP 3000L is the 5 GHz 5 GHz access point with an external antenna using 2 RP-SMA connectors and the options to serve to 64 connected clients . Thanks to the optional 20/40/80 MHz channel and 2 x2 Mu-Mimo , it is possible to achieve a total capacity of up to 500 Mbps . The unit has one metallic RJ45 port. The EPMP 3000L can be suitably supplemented with an original 90/120 ° sectoral antenna with out-of-the-line or third-party antennas (for example, RF elements). To reduce interference, it supports the dynamic filtering of the neighboring channel. And thanks to TDD synchronization it is possible to expand the network to thousands of end users with an efficient use of a small number of recurring channels. Extended temperature range-30 ° C to +60 ° C and IP67 protection predetermines the unit for long operation even in demanding conditions.



    For central network management, the units can be integrated into the Cnmaestro system. It is a cloud or on-premise platform for safe and comprehensive network management. CNmaestro simplifies the management of all Cambium devices, allows Zero-Touch provisioning new devices and offers a clear view of the network status. It optimizes the availability of the system, maximizes the permeability and helps to increase satisfaction for both corporate and residential customers.


    key features:
    • User permeability up to 1200 Mbps
    • Canal width 20 | 40 | 80 | MHz
    • power up to 29 dbm
    • Support GPS Synchronization of Units
    • dedicated radio for scan spectra without effect on operation
    • Disconnectable antennas (2x RPSA connector), compatibility with RF elements EPMP Twistport
    • support QoS for triple-play services
    • 1x 1GE Ethernet port, POE-in
    • Typical consumption of 12 W

    Parameters

    Power Supply PoE

    Ethernet parameters

    Number od RJ45 ports 1
    Number of SFP (1G) ports 0

    Physical parameters

    Depth (mm) 73
    Height (mm) 289
    Weight (kg) 0.5
    Width (mm) 210

    Wireless parameters

    Antenna type Omnidirectional
    Frequency 5 GHz
    MIMO (5 GHz) 2x2
    Operating mode AP
    WiFi Standards WiFi 5 (802.11ac Wave 2)
    All parameters Less parameters

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    +420 601 570 595
    stejskal@vanco.cz

    Product question

    Product question

    E-mail
    Phone
    Enquiry

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    (+420) +420 601 570 595
    stejskal@vanco.cz

    Downloads1

    Datasheet
    Data_sheet_ePMP_3000_Series_07272022.pdf Format pdf (599.1 kB) Download
