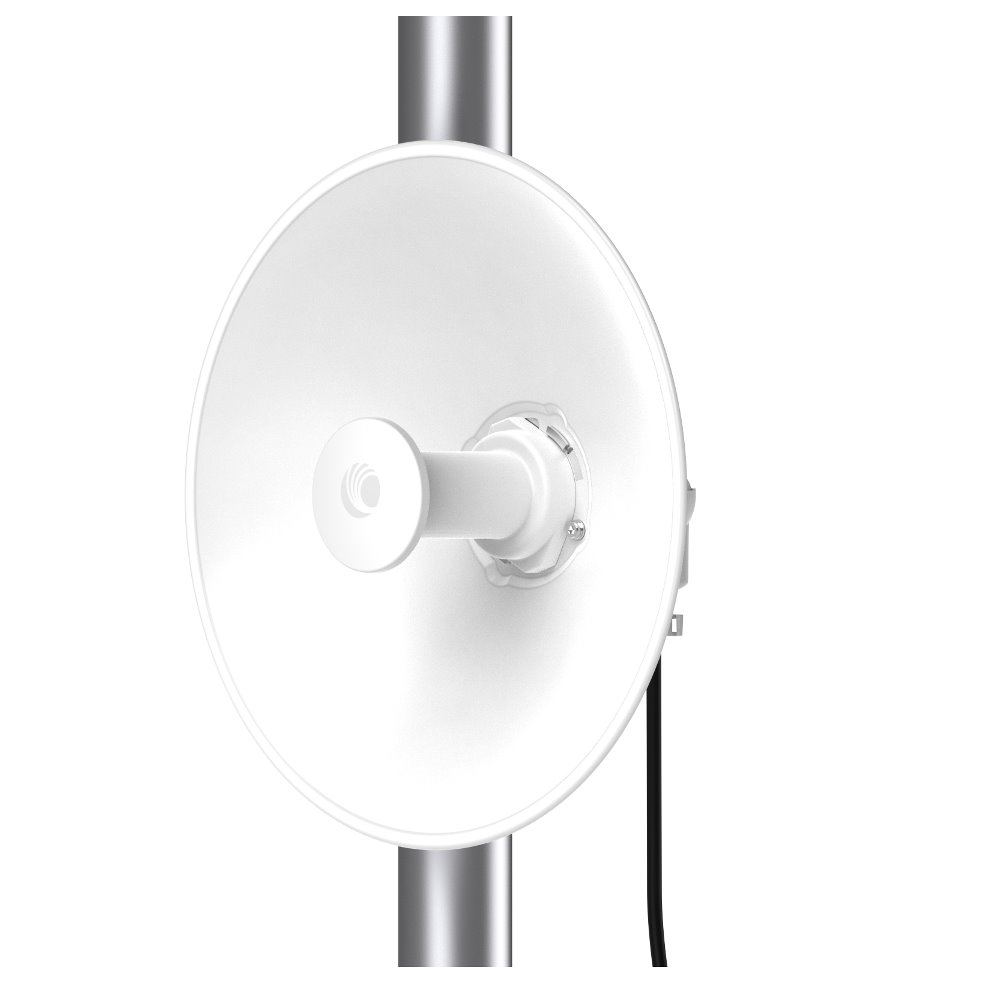

Cambium ePMP Force 4525L, client

The EPMP Force 4525 is a cost-effective client unit based on the WiFi 6 with user permeability up to 800 Mbps (2x2 outside, 1024 QAM, 20/40/80 MHz channel). Thanks to the 25 dBI and high output power, access lines can be built on long distances. dedicated radio for scan spectra allows you to select a channel that is at least guaranteed, without the influence of user traffic. The unit has 1x 1GE interface and supports POE power supply. Thanks to the expanded temperature range-30 ° C to +60 ° C, IP55 and

and high profit is a unit suitable especially for connecting clients over long distances or as a point-to-point connection.

For central network management, the units can be integrated into the Cnmaestro system. It is a cloud or on-premise platform for safe and comprehensive network management. CNmaestro simplifies the management of all Cambium devices, allows Zero-Touch provisioning new devices and offers a clear view of the network status. It optimizes the availability of the system, maximizes the permeability and helps to increase satisfaction for both corporate and residential customers.


key features:

• User permeability up to 500 Mbps
• Canal width 20 | 40 | 80 | MHz
• power up to 28 dBM
• dedicated radio for scan spectra without effect on operation
• Antenna gain 19 dBI (radiation angle H10 °/V10 °)
• support QoS for triple-play services
• Compatible with EPMP 4000 Access Points
• 1x 1GE Ethernet port, POE-in
• Typical consumption of 13 W

Package content:

• unit
• caliper for attaching to the tube
• POE adapter 30 V/0.5 and
• power cable
