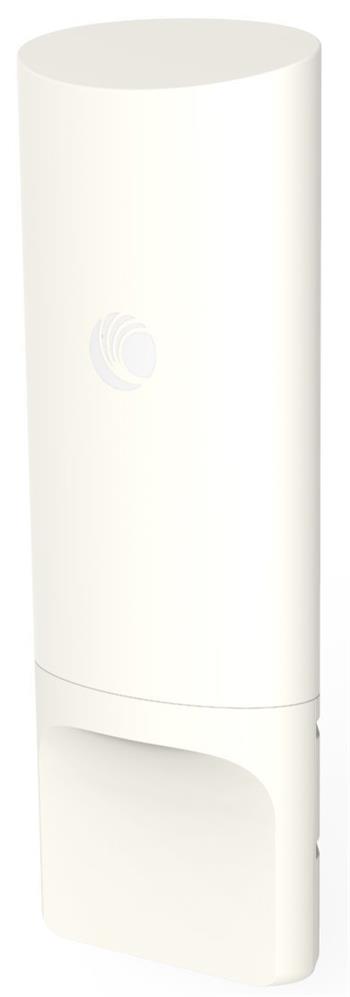

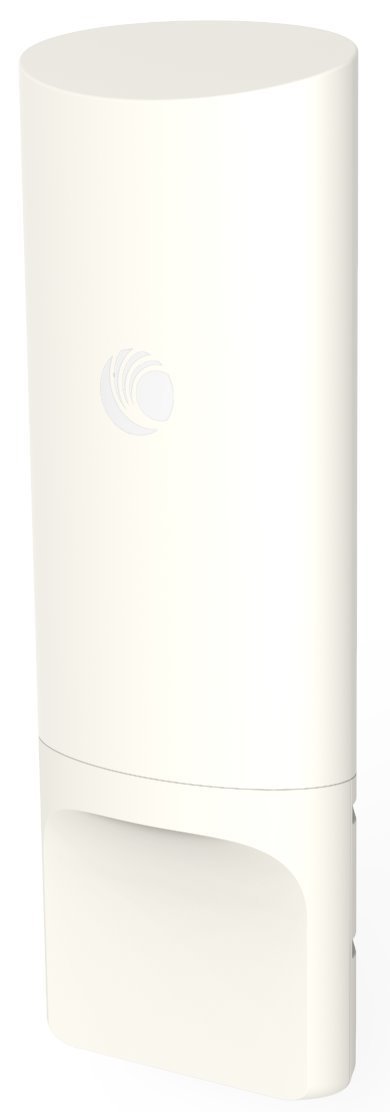

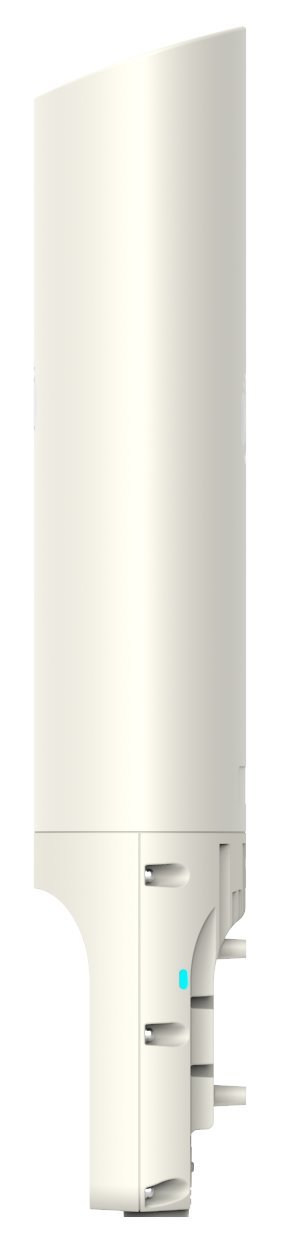

Cambium XV2-2T1, WiFi 6 access point, outdoor, 2.5G Eth port

Cambium Networks XV2-2T1 is a dual Wi-Fi 6 access point (AP) with an integrated 120 ° antenna to provide the highest quality of the new generation network. The Wi-Fi 6 technology provides a higher network speed and allows multiple connected devices at higher connection quality. It is also fully backward compatible with existing Wi-Fi technology.

The XV2-2T0 supports 2x2: 2 MU-MIMO in both frequency bands (2.4 and 5 GHz) and thanks to a combination of high modulation up to 1024 QAM and 80 MHz bandwidth, it achieves a total of up to 1.77 Gbps. At once, up to 512 clients can be connected and all modern features and standards are supported. Ble 4.1 Radio is also present.

• dualband, 2x2: 2 mu-mimo
• Ethernet Port 1x 1/2.5 GBE RJ45, 1x 1GBE RJ45
• Total data speed 1.77 Gbps
• Max 512 clients
• lte filter (Band 38, 40)
• overvoltage protection up to 4KV
• security WPA3, WPA-TKIP, WPA2 AES, 802.1x, 802.11W PMF
• Integrated omnidirectional antenna (11 /13 dBi)
• Standards Support IEEE 802.11 A/AC/AX/B/D/E/G/H/I/K/N/R/U/V/W/X
• tunneling (L2TP/L2ogre/PPPOE),
• EasyPass with Microsoft Azure and Google G suite integration
• cloud and local administration
• Power consumption max 20W, typically 11W, 802.3AT POE
• operating temperature-40 ° C to +65 ° C
• 3 Year Limited Lifefime Warranty

With an advanced controller (cloud or on-premise) CNmaestro , central management can be used for all Cambium Networks elements in the network to make the entire deployment and maintenance process more efficient. The basic variant of CNmaestro does not require any additional license fees.
