EnGenius ECW220S, WiFi 6 access point, cloud controller, security radio, BLE

The Enterprise Wi-Fi range and ENGENIUS Cloud Series' PoE switches provide flexible, scalable and reliable Wi-Fi for a wide range of applications. Whether you are looking for AP to cover your offices or need to provide ultra-fast Wi-Fi access in a large hotel or campus, cloud-managed access points Engenius meet the requirements for high transfer speed and permeability for hundreds of clients.

Regardless of the current or planned network size, access points managed by cloud will meet your needs. You can only use a few APs or an unlimited number of access points in unlimited networks at different locations-regardless of their size, infrastructure or physical location.



Thanks to the simple AP configuration on one click, it is possible to build the entire network and put into operation in an extremely short time. Similarly, problems and operation analysis are more efficient with the cloud solution compared to the classic local controller-artificial intelligence (AI) allows the Engenius Cloud to anticipate problems before they occur and provide accurate recommendations for active performance improvement.

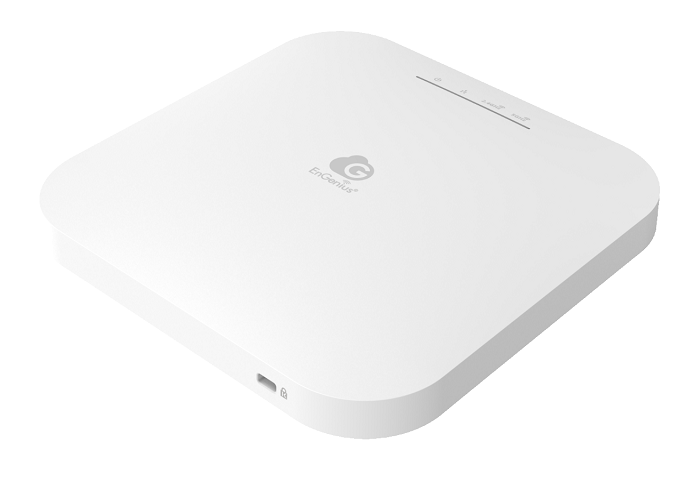

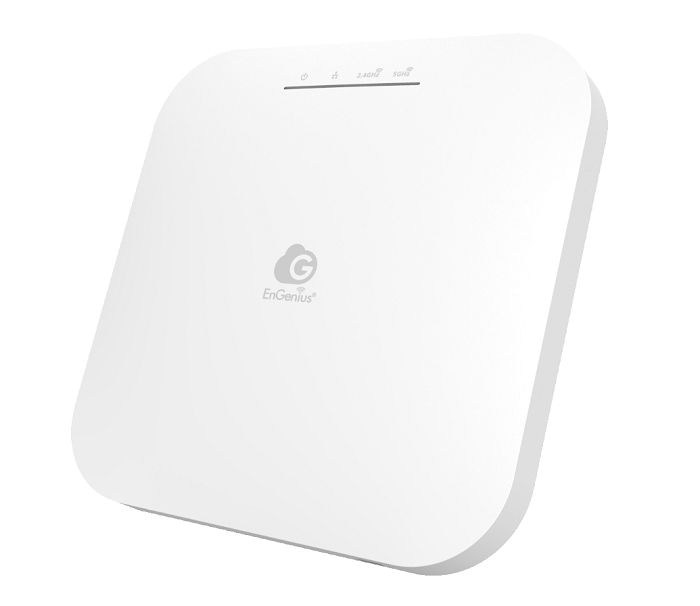

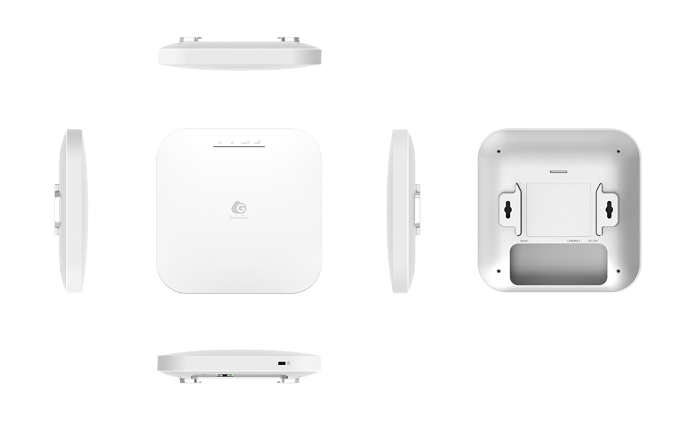

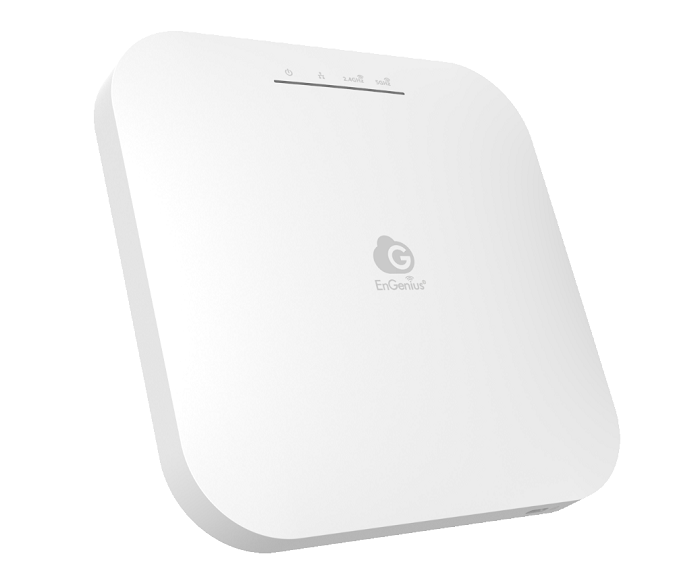

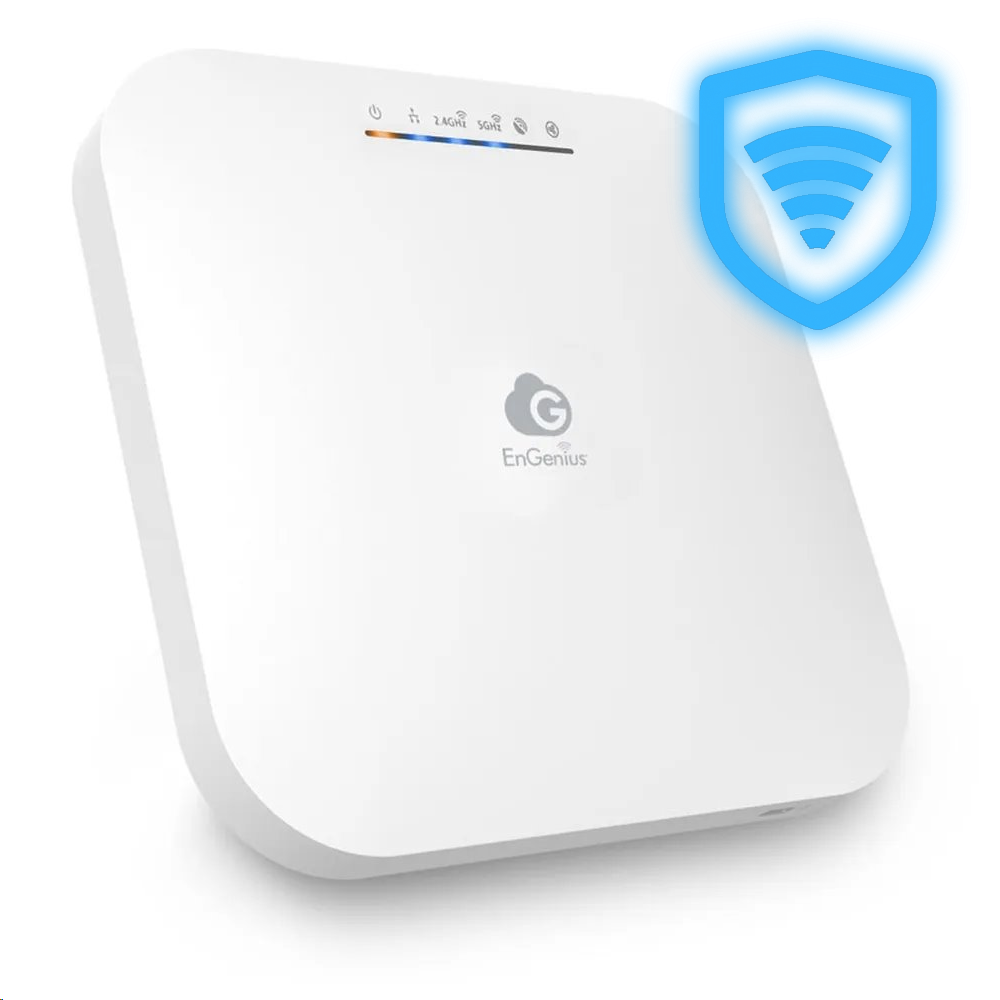

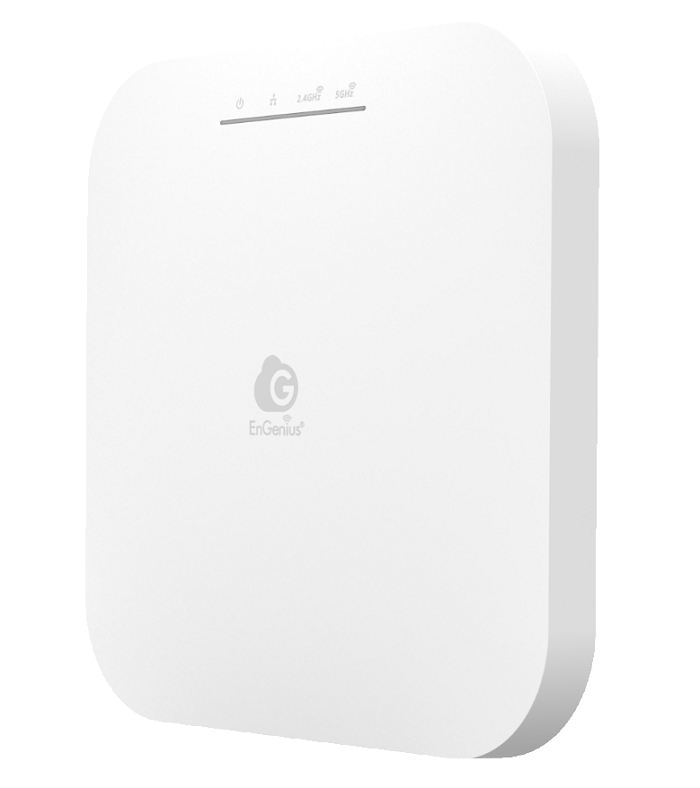

Engenius ECW220S
The two-band access point Engenius ECW220S is particularly suitable for use in business environments. It provides fast and reliable Wi-Fi coverage in the 2.4 GHz and 5 GHz bands with support , transfer speed to 1,774 Mbps , 2 × 2: 2 MU-MIMO, TX Beamforming, patented mesh. In addition, it contains dedicated Security Radio with patented technology Airguard eliminates threats for your network. Thanks to Ble 5.0 support (Bluetooth Low Energy), it is possible to get even more information about the device and use for example for accurate geolocation.

• Internal access point 802.11AX (WiFi 6)
• speeds up to 574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz)
• MU-MIMO technology (2 × 2: 2)
• dedicated Security Radio and Ble 5.0 module
• Support for technology Airguard to protect the network and clients
• real-time spectrum scan, zero-wait dfs
• TX Beamforming optimizes signal, reception and reliability
• band steering, fast roaming
• Guest Wi-Fi, Captive Portal including Social Network Login or Vouchers
• AP, AP MESH and MESH
• Gigabit Ethernet Poe Port
• Power supply 12 V DC or 802.3AF POE
• mounting on the ceiling or wall
• AP settings with one click-just scan the QR code and assign to the cloud
• unlimited number of access points in the cloud-access from anywhere, anytime
• Managing and monitoring network via mobile app
• Using the cloud is without additional license or service charges

Engenius Cloud
Get to know the ease of construction and the high efficiency of network management-from deployment to monitoring and solving problems with the comprehensive solution of Engenius Cloud will help you simplify the whole process. The Engenius Cloud is based on cloud computing technology-robust and dynamic cloud infrastructure, which is fully scalable from the smallest projects to the deployment of thousands of AP and ready on AI, will help you work intelligently in your network using important analytical and visualization tools.
The price of each AP includes free lifelong license for a cloud controller in the BASIC variant-this license is enough for all common operations and operation of the WiFi network. For advanced functions (security, authorization, reporting/backup, ...) it is necessary to purchase for a license. A complete description of the differences is possible

• easy management of multiple organizations and networks in one account, sort and filter individual networks
• Mass management AP and switches in one place
• Quick solution to graphical and visualization tools
• Information in real time Information about the status and performance of each individual AP and network as a whole
• Automatic network topology, built-in AP coverage view on maps
• Operation Analysis on 7.
• Captive portal with advanced features-Social network login, automated voucher printing option for temporary access, Radius support.
• Mobile application Engenius Cloud-full check over Switchi, access points and devices managed cloud, wherever you are.
• Possibility to remotely and centrally manage FW all devices, possibility to coordinate updates with planned maintenance
• One-CLICK registration of new AP via the web or mobile application



  Wi-Fi Standards:
• IEEE 802.11b/g/n/ax for 2.4 GHz
• IEEE 802.11a/N/AX for 5 GHz

  antennas:
• Integrated Omni-Directional
• 2 x 2.4 GHz: 4 DBI
• 2 x 5 GHz: 5 DBI

  interface:
• 1x 10/100/1000 Base-T, RJ-45 Gigabit Ethernet Port
• 1x DC Jack
• 1x reset button

  Power:
• Power-Over-Ethernet: 802.3af
• IEEE 802.11e Compliant Source
• 12 in DC/1 and Power Adapter

  Management:


• multiple BSSID
• 8 SSID for 2.4 GHz and 5 GHz
• Vlan tagging
• Support 802.1Q SSID-to-VLAN TAGGING
• Cross-Band Vlan Pass-Through
• Management VLAN
• Spanning Tree
• Supports 802.1d Spanning Tree Protocol
• QoS (Quality of Service)
• IEEE 802.11e Standard
• wmm
• SNMP V1, V2C

  Security:


• WPA/WPA2 Enterprise (WPA-EAP Using TKIP OR AES)/WPA3
• Airguard technology (detection and elimination of threats)
• Hide SSID in Beacons
• Mac Address Filtering, UP to 32 Macs Per Ssid
• Wireless STA (Client) Connected List
• Client Isolation


  Discover the power of Engenius Cloud




  More Parameters:

  name	value
  Operational modes:	AP, AP MESH, MESH
  Frequency range 2.4 GHz:	2400 MHz ~ 2482 MHz
  Frequency range 5 GHz:	5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
  Power transmitted:	to 22 dbm, TX Beamforming (TXBF)
  Radio Chains/Spatial Stream:	2 × 2: 2
  Max. throughput:	567 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz)
  Maximum power consumption:	12.8 W
  Operating temperature:	0 ° C ~ 40 ° C
  Weight:	390 G
  Dimensions (W x H x H):	160 x 160 x 34 mm



  Package content:
• 1x ECW220S
• 1x mounting kit on the T-round to the ceilings
• 1x mounting kit for installation on ceiling and wall
• 1x mounting accessories
• 1x fast user manual
