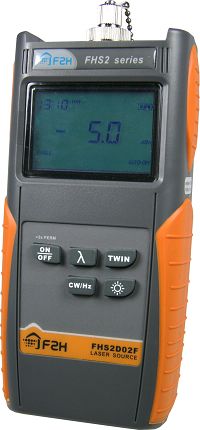

Grandway FHS2D02F Optical laser source
Source of invisible light with 2 wavelengthsMore information
Producer
Grandway
Part No.
FHS2D02F
Code
00017541
Warranty
12 Month
Order
Your price exc. VAT
158.98 EUR
exc. VAT
VAT
21%
Your price inc. VAT
192.37 EUR
inc. VAT
Ask for a better price
Products classification
Product question
Product question
Do you need help?
We will help you with product selection or technical problems.
(+420) 246 035 451
Information and orders
Jan Mencl
Product manager
(+420) +420 778 885 932
mencl@vanco.cz
Related products1
Related products
GPSR
Last visited
Description
The production series of FHS2D02F lights are laser emitters of two wavelengths with an output power up to-5dbm. The FHS2D02F unit is equipped with an automatic detection of the wavelength based on the use of an encypt protocol that allows units from the FHP2 Power Meter to automatically recognize and use suitable calibration parameters. This feature reduces the needs of communication between two techniques, simplifies measurements and reduces the risk of potential errors.
FHS light sources offer excellent reliability and mobility for accurate optical fiber testing. One output optical port offers a stable, reliable and powerful laser source using two wavelengths. This compact unit can work in both CW (Continuous) and"Modulated". The output output can be regulated. The battery status indicator is also integrated for user comfort.
properties:
Easy to use
practical packaging
Display backlight for work in dark environments
± 3db user adjustable
Integrated charging battery
1310/1550 nm for SM fiber testing
3-year warranty
Specification:
Model: FHS2Q01F
Laser type: LD
Output power:-5dbm ± 0.5 dB
Operating temperature:-10 ° C-50 ° C
storage temperature:-20 ° C-70 ° C
Dimensions (mm): 160 x 76 x 45
Weight: 270g
Output wavelength (nm): 1310/1550
Central wavelength: 1310/1550 ± 20nm
spectral width: 3nm
Output frequency (Hz): 270/1k/2k
output stability short-term: <± 0.05db @1310,1550nm;
±0.1db@850 &1300 &1490 &1625
Long-term output stability: <± 0.1db @1310,1550nm;
±0.2db@850 &1300 &1490 &1625
Automatic shutdown: Yes
backlight: Yes
