      IMCO POWER ALC04.H 55025, mains power supply, 55V/2.5A, 140W
      Compare Set Watchdog

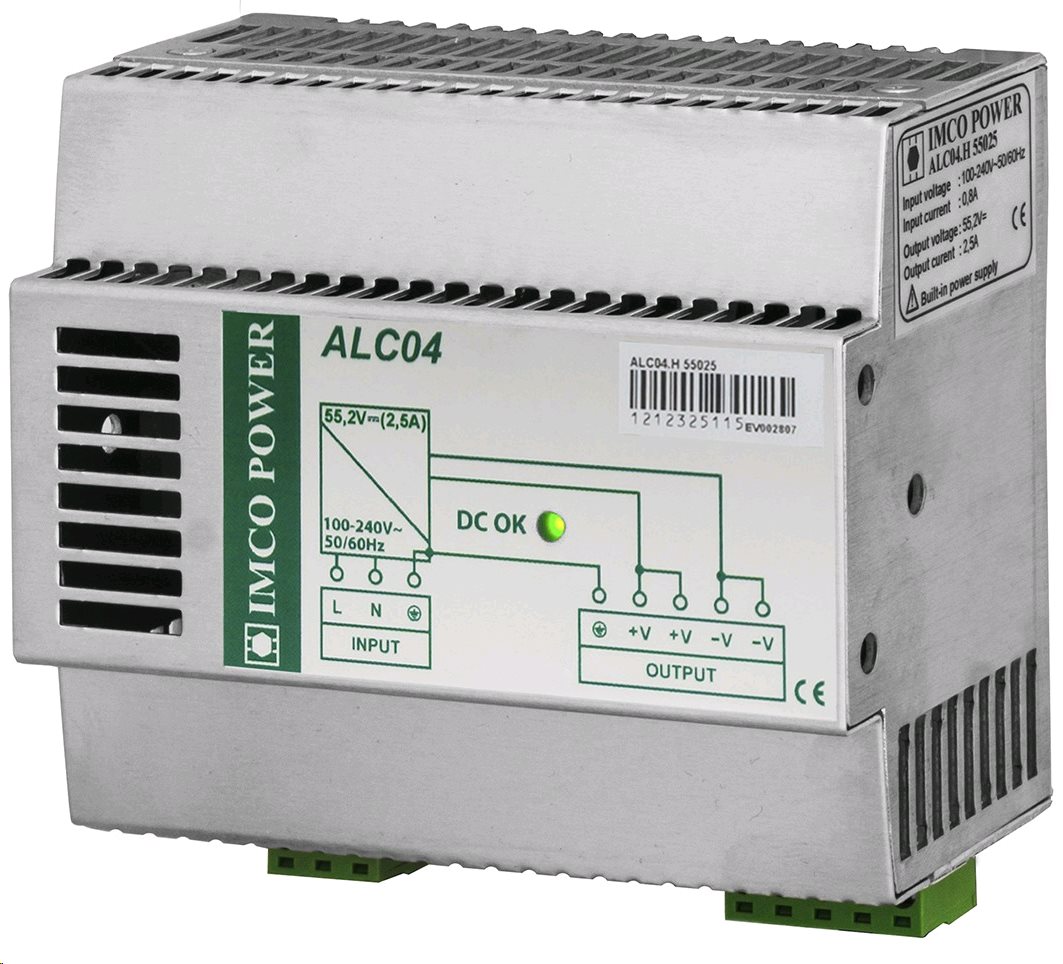

      IMCO POWER ALC04.H 55025, mains power supply, 55V/2.5A, 140W

      Mesh power supply 100-240V ~ 50/60Hz/55.2V (2.5A) with assembly on DIN rail, pfc. duplicated output + PE ground clamp and IU VA characteristic.More information

      Producer
        IMCO POWER

      Part No.


      EV002993


      Code
       00031033
      Warranty
      36 Month
      Availability

      in stock
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      142.12 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      171.97 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        High-quality power supply ALC04.H network power source is used to power equipment with 55V with power up to 138 W (55 V/2.5 A) . Sources allow operation in an industrial environment from-25 ° C to +60 ° C. In sources, components are not subject to rapid aging. The input is fitted with overvoltage protection of class D, the output is short-circuit and agalvanically separated from the input. LED on the front panel indicates the operation of the source.

        Sources are designed for mounting on din bar . The connection of inputs and outputs is through a removable connector with a cross-section of water up to 2.5mm2. Separate ground clamp allows you to ground one of the output poles.

        Parameters

        DC Output Voltage (V) 55.2
        DIN rail mounting Yes
        Input Voltage (V) 230
        Insulation strength 4 kV
        Local signalling LED
        Output Current (A) 2.5
        Power consumption (W) 140
        Properties Ochrana proti zkratu

        Ethernet parameters
        Network interface (Mbps) 10/100/1000

        Physical parameters
        Depth (mm) 90
        Design DIN rail
        Efficiency (%) 92
        Height (mm) 68
        Operating Temperature -25° až +50°C
        Weight (kg) 0.34
        Width (mm) 106

        Powering
        PoE No
