ORM 5 optical switchboard
Compare Set Watchdog

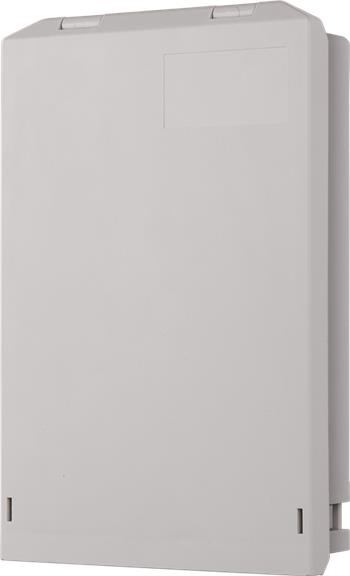

ORM 5 optical switchboard

Lockable wall optic cabinet is designed for internal or external wall installation. Especially for FTTH networks for termination of optical fibers on the inner or outer walls of houses especially in the rarefied area ; Removable lockable cover en...More information

Producer
  OEM

Code
 00030719
Warranty
24 Month
Your price exc. VAT
24.79 EUR exc. VAT
VAT
21%
Your price inc. VAT
29.99 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

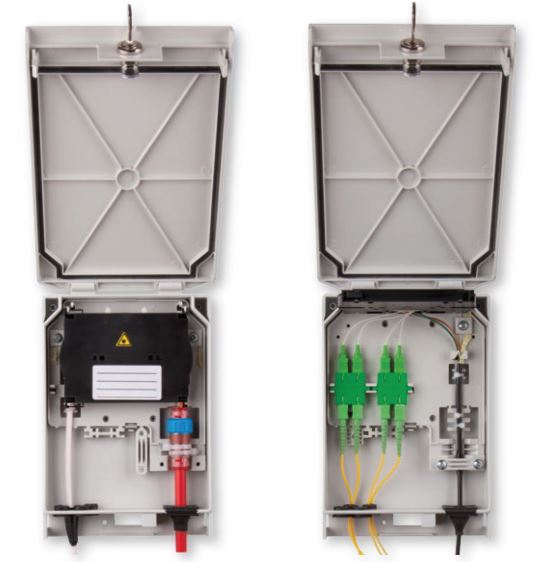

    The lockable wall optical switchboard is designed for internal or external wall installation. Especially for FTTH networks to end optical fibers on the inner or outer wall of houses, especially in thinner buildings

  • removable lockable cover ensuring easy access
  • step-shaped bushing in the rear wall of the switchboard (3–14 mm)
  • step-shaped bushing in the bottom of the switchboard (3–10 mm)
  • pre-pressed holes in the bottom for patchcord guidance through the wall
  • 4 split bushings for up to 2 patchcords or mechanically resistant participating cables, or 4 stepped cables/tubes
  • Li> capacity up to 4 × SC or 4 × E2000 or 8 × LC connectors and pigtails
  • welding cartridge supporting up to 12 heat or crimping protection of welds, or even mechanical couplings (4 pieces)
  • IP 54


  • parameters:
    name value
    Bushings-Right: 1 × Stage 3-14 mm for incoming cable
    Bushings-left: 4 × rubber split bushing 2 × 1-3 mm, or 4 × grades 3–14 mm
    BRACKS-bottom of cabinet: step-like bushing 3-10 mm for incoming cable
    degree of coverage: IP 54 according to ČSN EN 60529
    impact protection degree: IK 10 according to ČSN EN 50102
    sunlight (UV): ČSN EN 60068-2-5
    impact protection degree: k 10 according to ČSN EN 50102
    Color: Light gray RAL 7035
    Material-switchboard: PC+ABS CYCOLOY C2950-96235
    Temperature Test Test: -40 ° C/+70 ° C according to ČSN EN 60068-2-14
    Dimensions (mm): 235 × 156 × 45
    Weight (kg): 0.45



    Parameters

    IP protection IP54
    Material Plastic

    Optical parameters

    Capacity of optical connectors / welds 4
    Equipment Cassette
    Max. Number of Fibres 8
    Mounting on/in Wall
    Optical connector type SC, LC, E2000
