Product is discard!

Product is never more offered.

Contact product manager please: Ing. Jan Stejskal, stejskal@vanco.cz

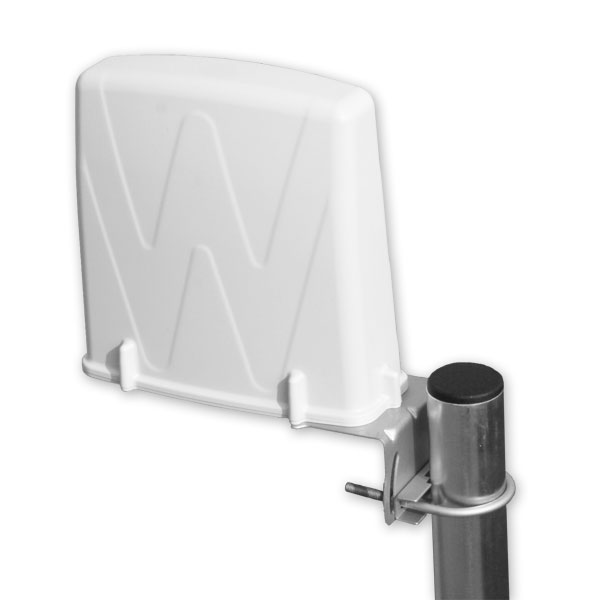

Outdoor box with antenna for 5 GHz, 19 dBi-V/H polarization
Compare Set Watchdog

Outdoor box with antenna for 5 GHz, 19 dBi-V/H polarization

An outdoor box with an antenna designed primarily for RB411/Wispstations.More information

Producer
  OEM

Code
 00011532
Warranty
24 Month

Similar products

  Code Article name Producer Status     Availability Price exc. VAT Price inc. VAT
GainMaster Installation Box on PW, 190x140x70 00002503 GainMaster Installation Box on PW, 190x140x70 GainMaster

11.47 EUR exc. VAT 13.87 EUR
GentleBOX JC-217UF, outdoor box with integrated 5GHz antenna 00004398 GentleBOX JC-217UF, outdoor box with integrated 5GHz antenna Jirous

23.88 EUR exc. VAT 28.90 EUR
GentleBOX JR-300, for outdoor installations, also for JRC-Duplex. 00010603 GentleBOX JR-300, for outdoor installations, also for JRC-Duplex. Jirous

37.04 EUR exc. VAT 44.82 EUR

    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

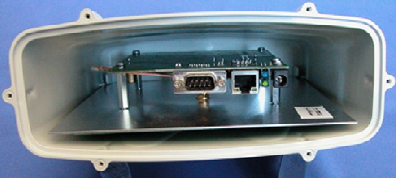

    An outdoor box with an integrated antenna intended primarily to be fitted with Mikrotik RouterBoard RB411/WispStation devices. Boards can be attached to spacers attached to the metal base. The product is ideal for wireless client applications   in the 5GHz band.   The device can be used with horizontal or vertical polarization.


    Specifications:

    • Frequency Range: 5,200-5,800 GHz
    • Antenna gain: 18.5dBi +/-0.5dB
    • VSWR less than 1.5
    • Radiation angle: (-3dB) 18 ° V/H
    • Tilt: mechanical
    • Impedance: 50 Ohms
    • Housing: white ABS, UV resistant
    • Polarization: Horizontal or Vertical (depending on installation)
    • Mounting on mast: 30-50mm
    • Dimensions: 20 x 21 x 8 cm (antenna without bracket)

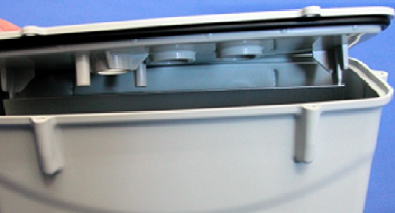

    • Inside space for device installation:
      -Internal dimensions: 169 x 169 mm
      -Max depth: 54 mm
      -Max depth to cable connector: 33 mm
    • also includes U.FL/RSMA antenna holder and pigtail.
    • supported boards: RB133, RB133C, RB411, RB411A, RB411AH, RB411R, WispStation


    Package Contents:

    • antenna, mounting kit for mast 30-50 mm (tilt), UTP cable grommet, seal + screws, U.FL/RSMA pigtail

    Parameters

    Antenna gain (dBi) 18,5dBi
    Beam angle horizontal (°) 18°V/H
    Connector RSMA
    Dimensions 20 x 21 x 8 cm
    Fit na stožár
    Frequency range 5 GHz
    Polarization V / H (dle montáže)
