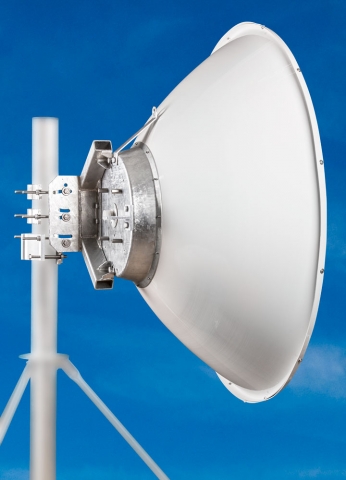

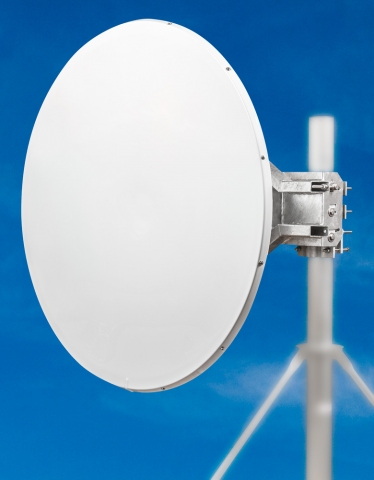

Parabolic antenna 120cm 10/11 GHz Ra

Description:
Professional microwave antenna
Deep parabola for excellent interference suppression and high mechanical strength
high insulation between neighboring joints
Radom part of the package

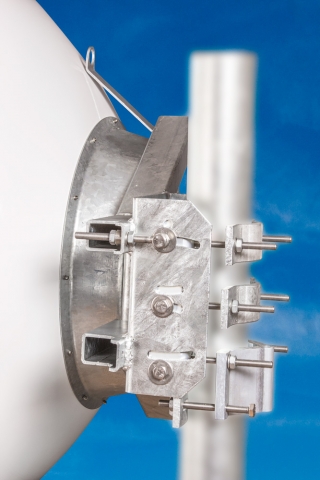

Massive holder with accurate elevation settings in the range of ± 13 ° and azimuth ± 7 °
Maybe right and left mounting

Technical parameters:
Frequency band 10.1-11.7 GHz
Profit 10.1 GHz 39.5 ± 0.5 dBI
Profit 11.7 GHz 40.5 ± 0.5 dBi
PSV ? 1.3
Radiation angle-3dB 1.5 °
ETSI standard EN 302-217-4-2 Class 2
Polarization according to the installation of the unit
Connecting Wavepiece O 19 mm
Parabola O 120 cm-aluminum alloy with burned color
Radom UV Stable plastic ABS
Mounting on a mast of 80-120 mm
o 60-80 mm-with a adjustable bracket set
For assembly into demanding weather conditions, we recommend a bracing kit. For installation on a mast of 60-80 mm it is necessary to use a adjustable bracket set.
