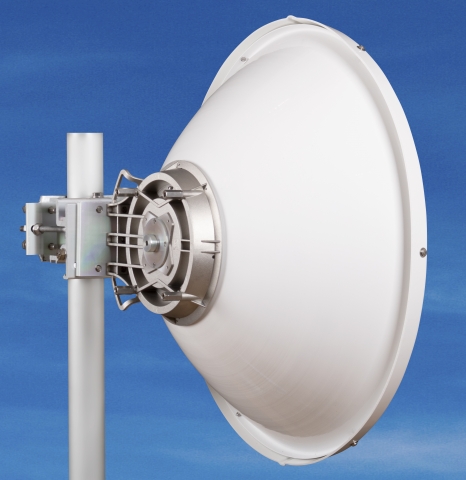

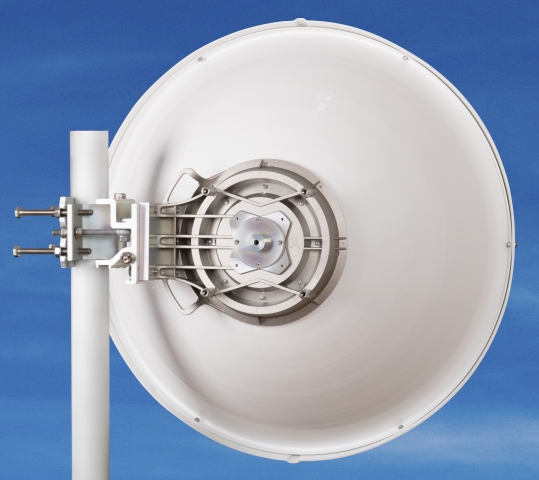

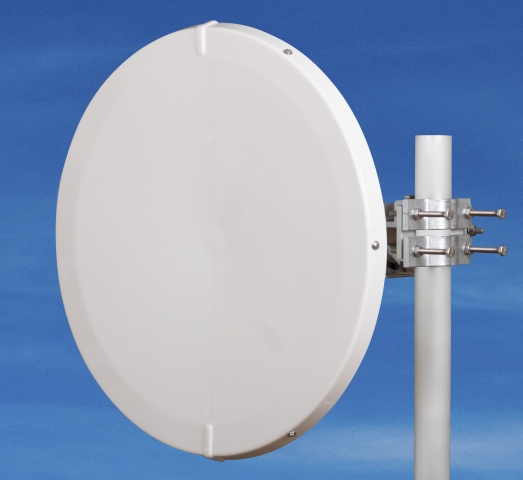

Parabolic antenna 68cm 17/18 GHz Ra

parabolic antenna for microwave joints in bands 17 and 18 GHz. Precise version meeting ETSI EN 302-217-4-2 V1.5.1 Class 3

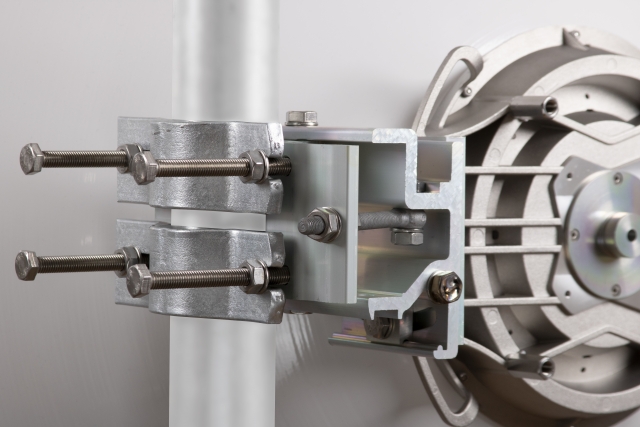

Antenna is in a set with a holder that allows easy mounting on the mast.

First, just install the bracket with approximate direction and then easily hang an antenna with a microwave. The holder allows precise settings in both directions. Maybe the right and left mounting is.

Technical parameters

• diameter of the parabolic area of 400 mm
• Weight of 13.6 kg
• Mounting on a mast of 42-120 mm
• Frequency range 17.1-19.7 GHz
• profit Low Band 38.6 ± 1 dbi
• profit High Band 40.0 ± 1 dBi
• radiation angle (-3 dB) 1.5 ° ± 0.5 °
• Reflection attenuation 17 db
• ETSI EN 302-217-4-2 V1.5.1 Class 3
• input/output circular waveguide 11 mm
• waveguide + fastening of the microwave unit RACOM compatible
