PROCET PT-PSE104GB-60-10 v2, 10Gbps PoE source, 55V/1A, 60W

Name: PROCET PT-PSE104GB-60-10 v2, 10Gbps PoE source, 55V/1A, 60W
Brand: PROCET
SKU: 49572
Price: 57.35 EUR
Availability: InStock

The 802.3AF/AT/BT POE device with 10 GBPS support for a device with an output of up to 60W.More information

Producer

PROCET

Code

00070201

Availability

Availability in stores

Order

Your price exc. VAT

47.40 EUR exc. VAT

VAT

21%

Your price inc. VAT

57.35 EUR inc. VAT

Ask for a better price

Description

PoE adapter Procet PT-PSE104GB-60-10v2 is a reliable and robust solution for powering various network elements using PoE standard 802.3bt , which allows you to power even high-power devices up to 60 W (power on all wires). In addition, this adapter supports 1 / 2.5 / 5 / 10G Ethernet , making it suitable for powering high-throughput backbone components or, for example, motor-operated PTZ cameras.

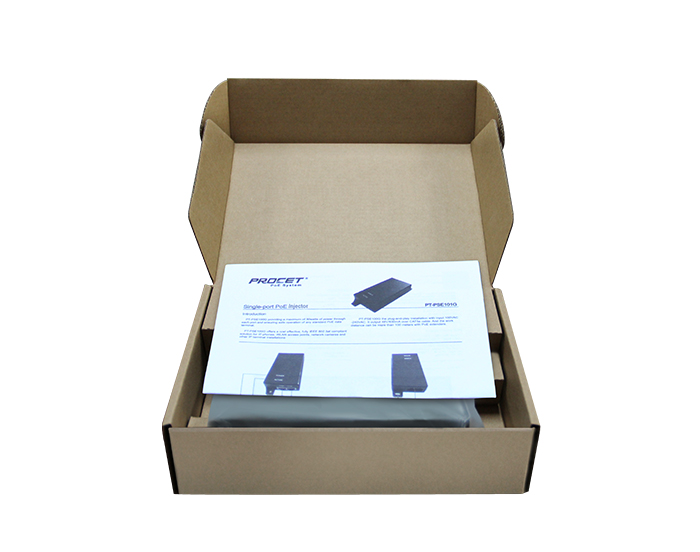

Thanks to the mounting holes and compact size, it is not a problem to simply place the device on a mounting plate in the cabinet or directly on the wall. The package includes a connecting cable with an EU terminal.

Features:

Ethernet standard: 1 / 2.5 / 5 / 10GbE NBASE-T
PoE standard: IEEE802.3bt - 4/5 (+), 7/8 (-), 3/6 (+), 1/2 (-)
Output voltage: 55 V
Output current: 1.1 A
Input voltage: 100-240 VAC / 50-60 Hz
AC input protection: 1.5 kA (8 / 20us) / 3 kV (1.2 / 50us)
Temperature range: 0 to +40 ° C
Dimensions: 146 x 66 x 34 mm
Weight: 255 g

Parameters

Ethernet parameters
DC Output Voltage (V)	55
Input Voltage (V)	230
Output Current (A)	1.1
Output Power (W)	60
Network interface (Mbps)	1000/2500/5000/10000
Physical parameters
Depth (mm)	146
Design	Standalone
Height (mm)	35
Operating Temperature	0° až +40°C
Weight (kg)	0.255
Width (mm)	66
PoE parameters
Number of PoE ports	1
PoE standard	802.3at, 802.3af, 802.3bt
Powering
PoE	Yes
Typ zdroje	PoE
