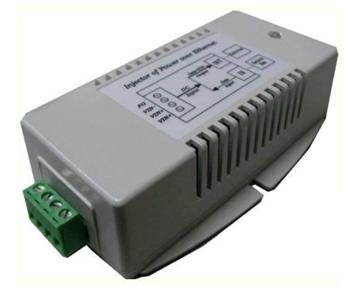

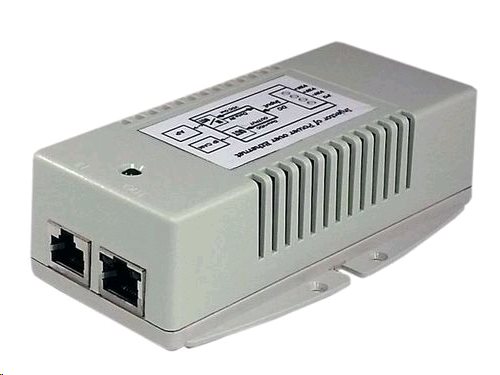

Tycon System TP-DC-2448GDX2-HP, converter with 2x PoE, 24V DC/56V DC, 2x25W

Compare Facebook Set Watchdog

Tycon System TP-DC-2448GDX2-HP, converter with 2x PoE, 24V DC/56V DC, 2x25W

TYCON TP-DCDC-1248GDX2-HP is HP voltage converter with double PoE port with power supply according to standard 802.3af/at. I.e. Both ports support POE power. The input voltage 10-15VDC is regulated at 56V/0.38A on each port. The source has two insulated VST ...More information

Producer

TYCON Power

Part No.

TP-DC-2448GDX2-HP

Code

00075267

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

182.21 EUR exc. VAT

VAT

21%

Your price inc. VAT

220.48 EUR inc. VAT

Ask for a better price

Description

TYCON TP-DCDC-2448GDX2-HP is a HP voltage converter with a double PoE port with 802.3af/at standard. I.e. Both ports support POE power. The input voltage of 18-36 VDC is regulated at 56V/0.63A on each port. The source has two insulated inputs for redundant power.

Use:

12V/24V/48V battery systems

wireless access points and client stations

security cameras, IP phones

Parameters

Ethernet parameters
DC Output Voltage (V)	48
Input Voltage (V)	12
Output Current (A)	0.6
Output Power (W)	70
Network interface (Mbps)	1000, 10/100/1000
Physical parameters
Depth (mm)	125
Design	Standalone
Efficiency (%)	80
Height (mm)	38
Operating Temperature	-40° až +80°C
Weight (kg)	0.255
Width (mm)	75
PoE parameters
Number of PoE ports	2
PoE standard	802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
