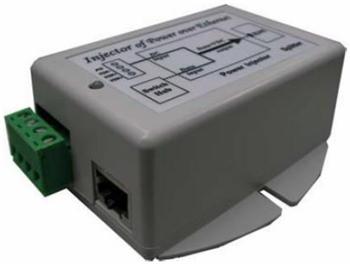

Tycon System TP-DCDC-1224, converter with PoE, 12V DC/24V DC, 19W

Name: Tycon System TP-DCDC-1224, converter with PoE, 12V DC/24V DC, 19W
Brand: TYCON Power
SKU: 7595
Price: 64.10 EUR
Availability: InStock

DCDC converter with integrated passive PoE injector, input voltage 9-36VDC (redudant), output voltage 24VDC, 19WMore information

Producer

TYCON Power

Part No.

TP-DCDC-1224

Code

00017676

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

52.98 EUR exc. VAT

VAT

21%

Your price inc. VAT

64.10 EUR inc. VAT

Ask for a better price

Description

series DCDC series with integrated PoE port is the ideal solution for applications solved by DC power. Thanks to the input range of 9-36V and the double-insulated input power inlet are suitable for battery and DC systems.

Thanks to the choice of output voltage, Tycon Power System covers a complete range of wireless devices including microwaves, IP cameras or IP phones. According to the product, the output voltage can be selected by standardized 802.3af/at or only passive injector (for UBNT/microtics units, etc.)

DC converters are made in industrial standard and their operation is designed for high temperature.

Use:

12/24V battery systems
Wireless connection
Powering IP phones, cameras

Parameters

Ethernet parameters
DC Output Voltage (V)	24
Input Voltage (V)	12
Local signalling	LED
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	0,8
Output Power (W)	19
Remote signalling	Ne
Network interface (Mbps)	10/100
Physical parameters
Depth (mm)	85
Design	Standalone
Efficiency (%)	75
Height (mm)	36
Operating Temperature	-30° až 60°C
Weight (kg)	0.134
Width (mm)	76
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
