      UBNT airMAX NanoBeam 2AC
      Compare Set Watchdog

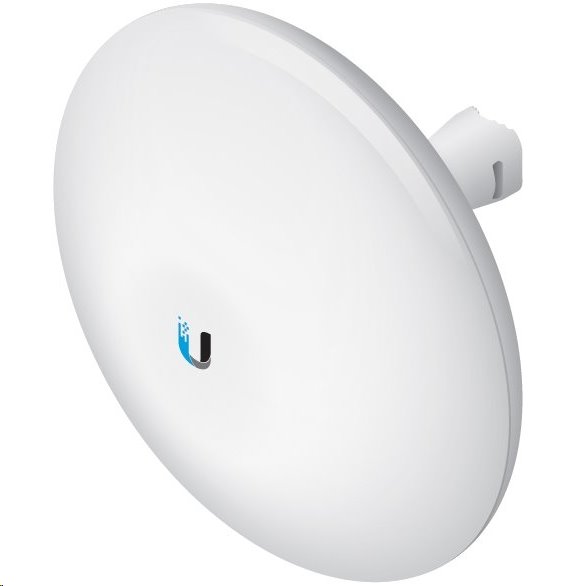

      UBNT airMAX NanoBeam 2AC

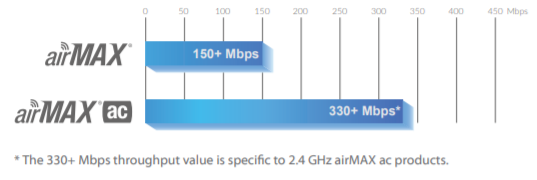

      UBNT Airmax Nanobeam 2AC-13 is a powerful outdoor unit including 13 dBI outside 2x2 antennas for 2.4 GHz bands, which achieves up to 330 MB/s and stable connections in a guaranteed environment due to 256 qam modulation.More information

      Producer
        Ubiquiti

      Part No.


      NBE-2AC-13


      Code
       00069763
      Warranty
      24 Month
      Availability

      in stock (External)
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      79.13 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      95.75 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        Ubnt Airmax Nanobeam 2AC-13 is a powerful outdoor unit including 13 dBI outside 2x2 antennas for the 2.4 GHz band that achieves 256 QAM Even in a guaranteed environment. Inside is the powerful MIPS 74kc processor, which is seconded by 64 MB of memory. The device has a gigabit port of RJ-45, after which the unit can also be powered by a passive PoE adapter.

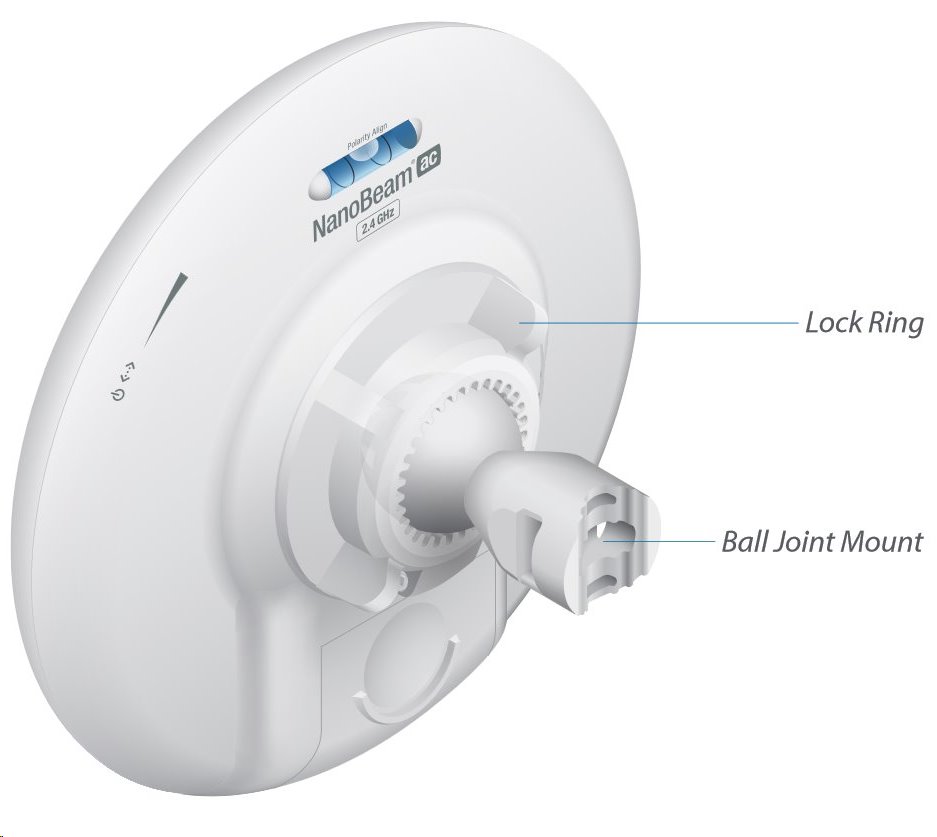

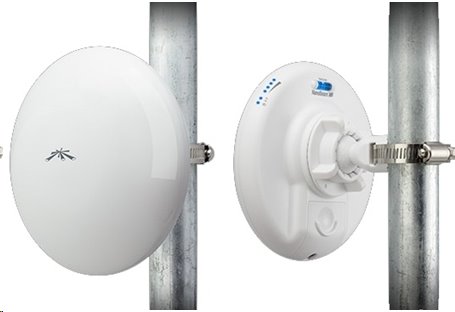

        • The device can be easily installed on the mast-just one key is enough to install.
        • Power is realized by the PoE passive adapter that is included.
        • unit can be used for and PTP connections.

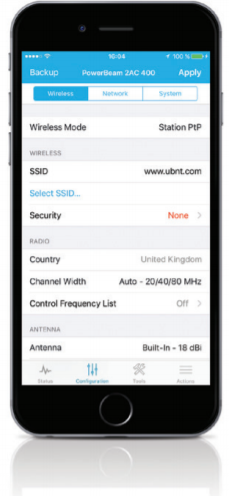

        • Simple installation is done using UNMS ™ for iOS/Android smartphones

        Package content:
        • device
        • Gigabit PoE power adapter 24 V/0.5 and
        • power cable
        • tightening tape
        • plastic joint + plastic lock

        Parameters

        Antenna gain (dBi) 13, 13
        Consumption 7,5
        CPU - frequency (MHz) 533
        Encryption WPA2 AES
        Operating systém airOS VIII
        Platforms UMOBILE
        Power Supply PoE
        Processor Atheros MIPS 74KC
        Radom no
        RAM 64 MB

        Ethernet parameters
        Gigabit LAN yes
        Network interface (Mbps) 10/100/1000
        Number od RJ45 ports 1
        Number of SFP (1G) ports 0

        Physical parameters
        Depth (mm) 125
        Design Outdoor
        Height (mm) 189
        Operating Temperature -40° až +70 °C
        Weight (kg) 0.530
        Width (mm) 189

        Wireless parameters
        Antenna type Directional
        Frequency 2,4 GHz
        MIMO (2,4 GHz) 2x2
        Operating mode AP, Client, Client Router (wisp), AP Router
        Vysílací výkon 2,4 GHz (dBm) 27
        WiFi Standards airMAX, airMAX ac
        WIFI transfer rate - 2.4 GHz [Mbps] 433
        All parameters Less parameters

        Do you need help?

        We will help you with product selection or technical problems.

        (+420) 246 035 451 Information and orders

        Ing. Jan Stejskal

        Product manager
        +420 601 570 595
        stejskal@vanco.cz

        Product question

        Product question

        E-mail
        Phone
        Enquiry

        Do you need help?

        We will help you with product selection or technical problems.

        (+420) 246 035 451 Information and orders

        Ing. Jan Stejskal

        Product manager
        (+420) +420 601 570 595
        stejskal@vanco.cz

        Downloads2

        Datasheet
        NanoBeam_2AC_DS.pdf Format pdf (4 292.4 kB) Download
        QIG
        NanoBeam_2AC-13_QSG.pdf Format pdf (4 241.0 kB) Download

        GPSR
