UBNT airMAX NanoStation M2 loco

UBNT Airmax Nanostation M2 Loco is a completely outdoor unit, including 2x 8 dBI (2x2 outside) antennas for 2.4 GHz bands suitable as a client solution for shorter distances. The unit allows you to communicate at a transfer rate of up to 300 Mbps.More information

Producer

Ubiquiti

Part No.

LocoM2

Code

00018194

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

35.93 EUR exc. VAT

VAT

21%

Your price inc. VAT

43.47 EUR inc. VAT

Ask for a better price

Description

Ubnt Airmax Nanostation M2 Locom (Locom2) is a completely outdoor unit, including 2x 8 dBI (2x2 outside) antennas for the 2.4 GHz client solution. The unit allows you to communicate at to 300 Mbps . Compared to the predecessor of Loco2 has a stronger processor clocked at 400 MHz and more memory.

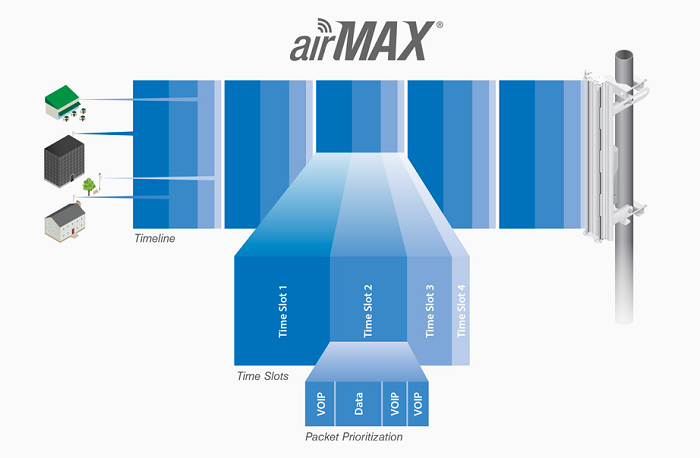

The biggest advantage of any Airmax devices is, in addition to the high transfer rate thanks to the 802.11n use of TDMA time multiplex. TDMA Airmax protocol allows excellent scalability and high permeability while maintaining low latency in PTMP networks.

Package content:

device
POE Power Source (24 V DC)
power cable
2x tightening tapes

Parameters

Ethernet parameters
Antenna gain (dBi)	8
Consumption	5,5
CPU - frequency (MHz)	400
IPv6 support	Transparent (Bridge mode)
Počet vestavěných antén	2
PoE Type	Input
Power Supply	PoE
Processor	Atheros MIPS 24KC
Radom	no
RAM	32 MB
Network interface (Mbps)	10/100
Number od RJ45 ports	1
Number of SFP (1G) ports	0
Physical parameters
Depth (mm)	31
Design	Outdoor
Height (mm)	163
Operating Temperature	-30° až +75 °C
Weight (kg)	0.180
Width (mm)	80
Wireless parameters
Antenna type	Vestavěná, Sector
Frequency	2,4 GHz
MIMO (2,4 GHz)	2x2
Operating mode	AP, Client Router (wisp), Client, AP Router
Vysílací výkon 2,4 GHz (dBm)	23
WiFi Standards	airMAX, 802.11b/g, WiFi 4 (802.11n)
WIFI transfer rate - 2.4 GHz [Mbps]	300

All parameters Less parameters

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

+420 601 570 595

stejskal@vanco.cz

Products classification

Product question

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

(+420) +420 601 570 595

stejskal@vanco.cz

Downloads3

Datasheet

nsm_ds_web.pdf Format pdf (7 310.0 kB) Download

Quick Start

NanoStation_M_Loco_M_QSG.pdf Format pdf (2 241.7 kB) Download

CE

locoM2_CE_DoC.pdf Format pdf (82.3 kB) Download
