Used: INNO View5 fiber optic welder

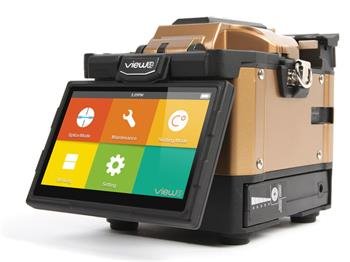

The INNO View5 optical fiber welder is a very reliable helper thanks to its robust construction with protective elements, tempered glass, dust resistance and water resistance. large 5" touch screen with high resolution and intuitive graphic interface provides users with a large and clear image of the thread. Double tap you can zoom in on the thread up to 520x (world's largest magnification). Three LEDs illuminating the welding the chamber allows welding even in an unlit environment.

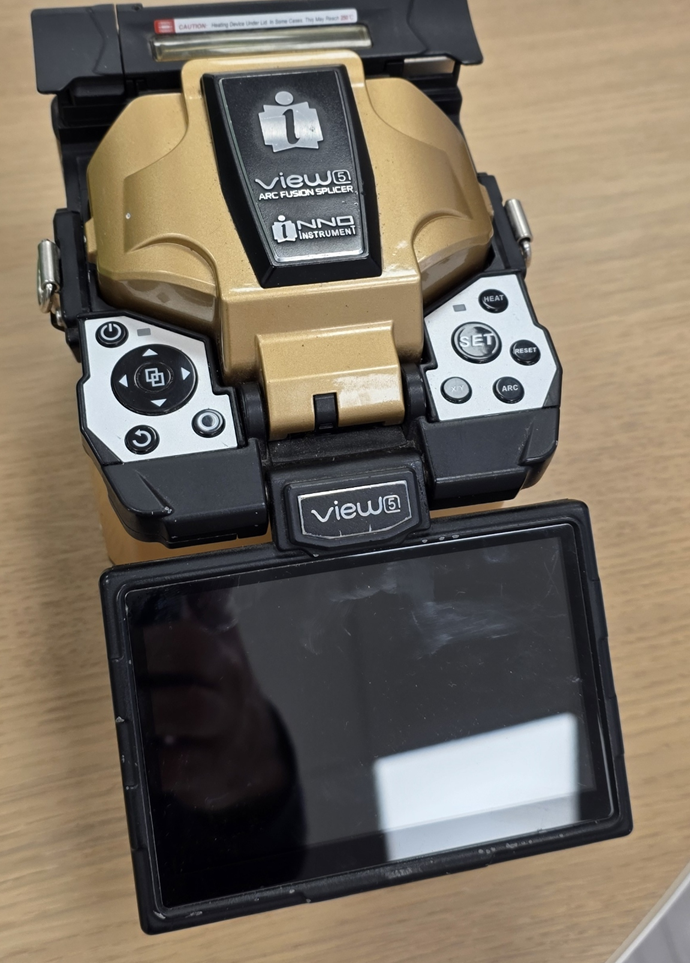

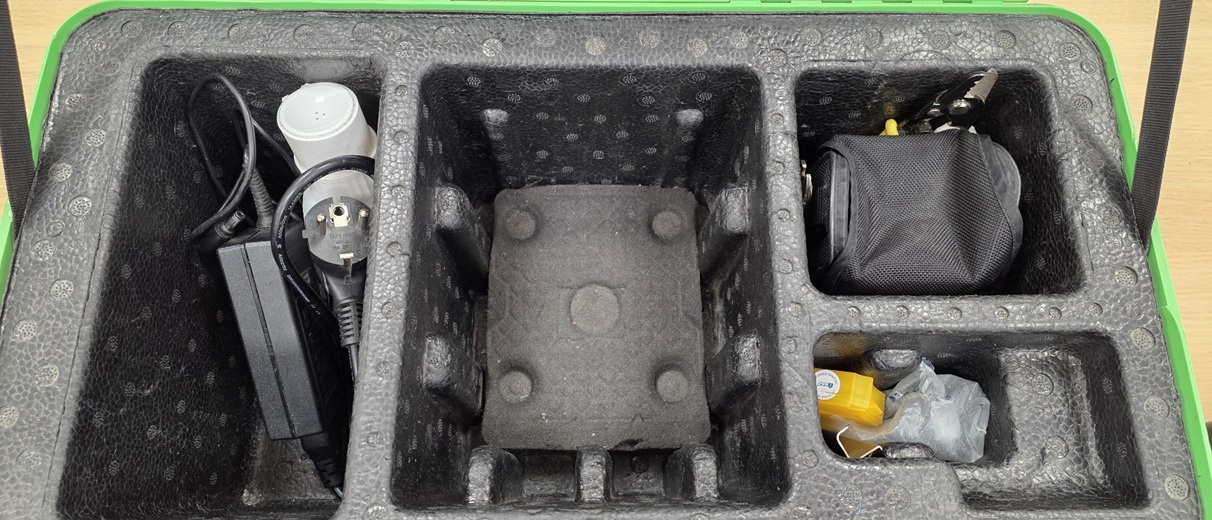

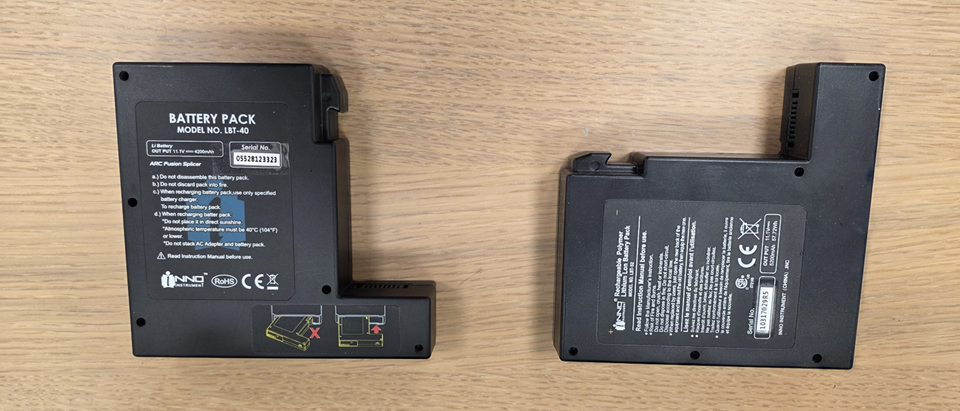

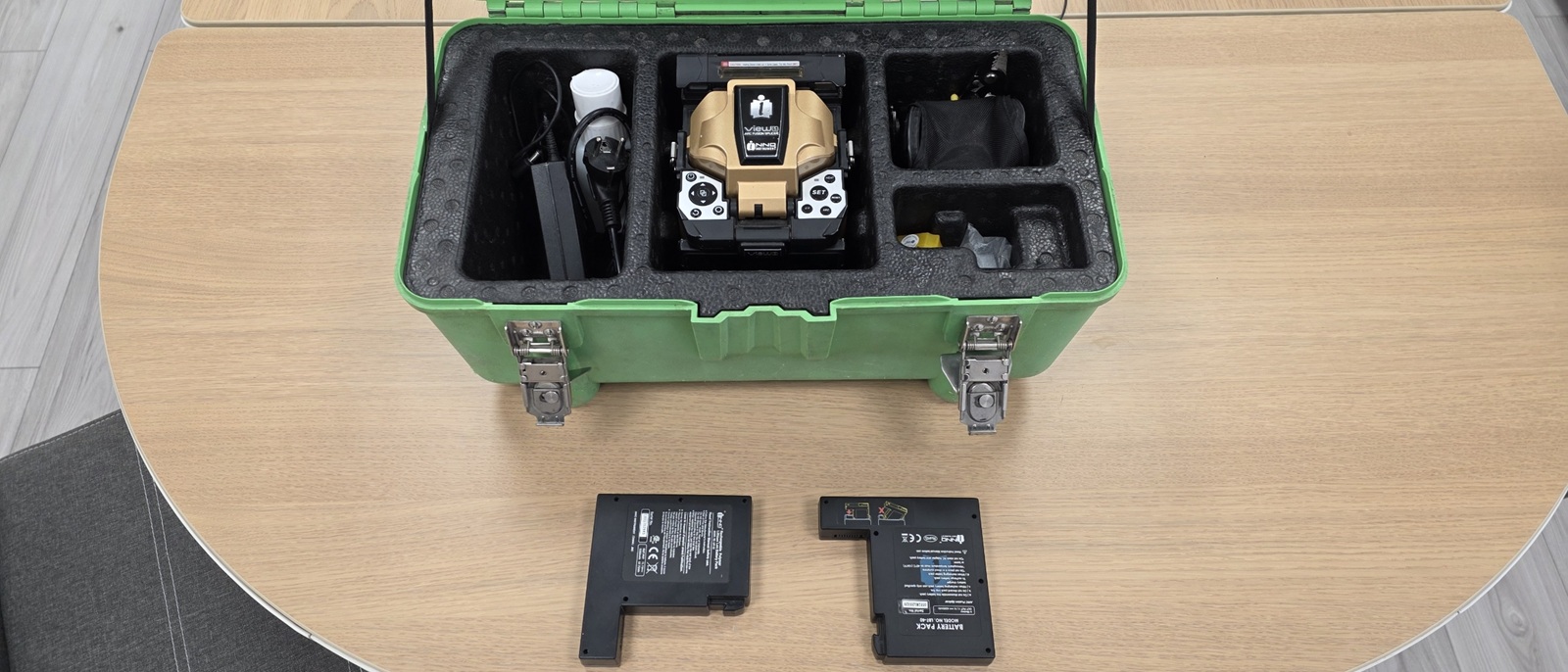

The welder is 10 years old, serviced at VanCo. The electrodes have recently been changed and the breaker has a new blade. According to the counter, approximately 8,000 welds were made on the welding machine. The package includes two batteries (new and old). Real photos can be seen in the gallery.

Parameters:

Dimensions	130 x 147 x 155mm
Weight	without battery 1.85 kg; with battery 2.21 kg
Supported Threads	SM(ITU-T G.652\u0026G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655)
Welding Modes	max 128 modes
Cunt mods	6 preset modes/max 32 modes
Standard weld attenuation	SM: 0.02dB/MM:0.01dB/DS:0.04dB/NZDS: 0.04dB/G.657: 0.02dB(ITU-T Standard)
Lighting	3 white LEDs
The duration of the feud	Quick mode : 7 sec/Auto mode : 9 sec
Length of weld protection	20-60 mm
Protection bake time	13 sec
Result memory	2000 feuds
Terms of Service	altitude: 0-5000 m, humidity: 0-95%, temperature:-10-50°C, wind: max 15 m/s
Storage conditions	humidity: 0-95%, temperature:-40-80°C
Display	90° bi-directional view, 5.0” Color High Resolution Display
Show thread	X, Y, XY, X/Y : 520X magnification
Power Supply	input: AC 100-240V, DC 9-14V
Battery capacity	4200mAh/typically 170 welds with protection bake
Control Options	buttons, touch screen
Automatic calibration	Automatic calibration according to pressure and temperature
Electrode life	3500 feuds
Terminal	USB2.0/Mini USB
