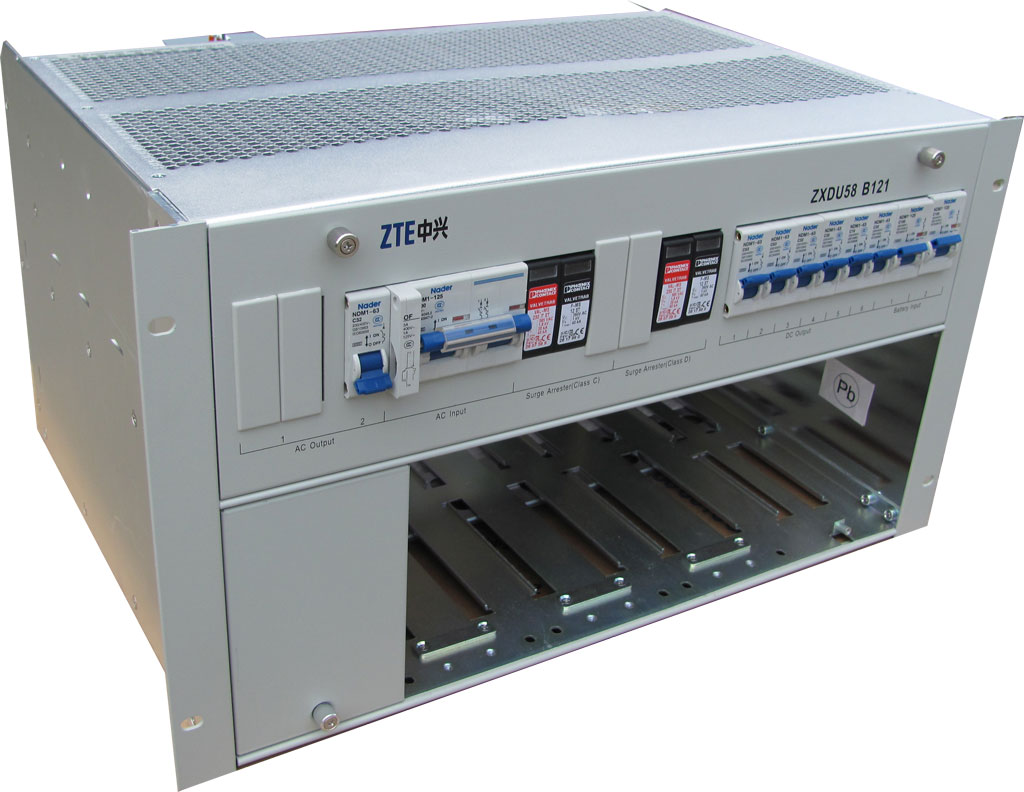

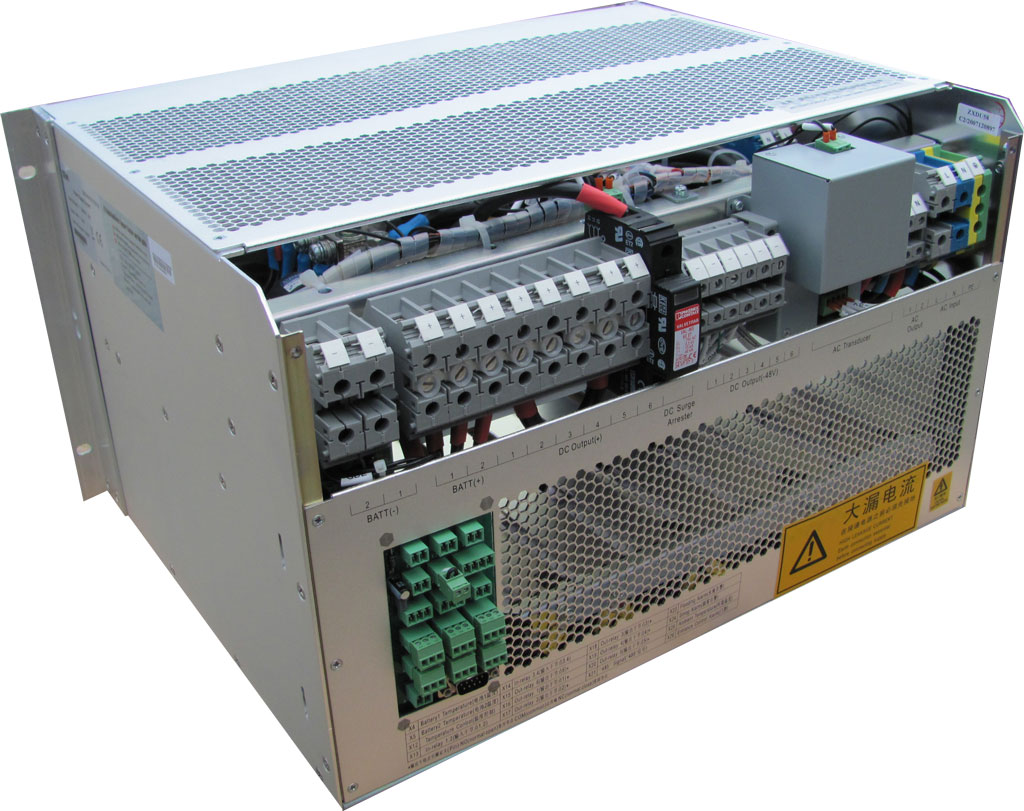

Zdroj ZTE ZXDU58 B121

Výkonný vestavěný zdroj ZTE ZXDU58 B121 navržený pro využití v telekomunikacích.

AC Input

• Rated input voltage: 380V AC three phase/220V AC single phase (compatible)
• Input Voltage range: 80 ~ 300V AC
• Maximum input current: 100 A
• Frequency: 45 Hz – 66 Hz
• Power factor: 0.99 (with full load)
• THD: <2.8%

DC Output

• Output voltage: -48V DC nominal; operating range -42~ -58V DC
• Output current: 120 A (full load at >154V AC)
• Battery input: Two battery input branches
• Output breaker: Six DC output breaker branches
• Efficiency: 93% (rated input; full load)
• Protection: OCP, OVP, UVP, OTP
• Safety standard: IEC60950 standards

Environment Requirement

• Operating temperature –5°C ~ 45°C
• Storage temperature –40°C ~ 70°C
• Relative humidity: 10% to 90% ( 40% to 60% recommende)

Dimensions and weight

• Dimensions (H x W x D) 265.6mm×482.6mm×350mm,35kg

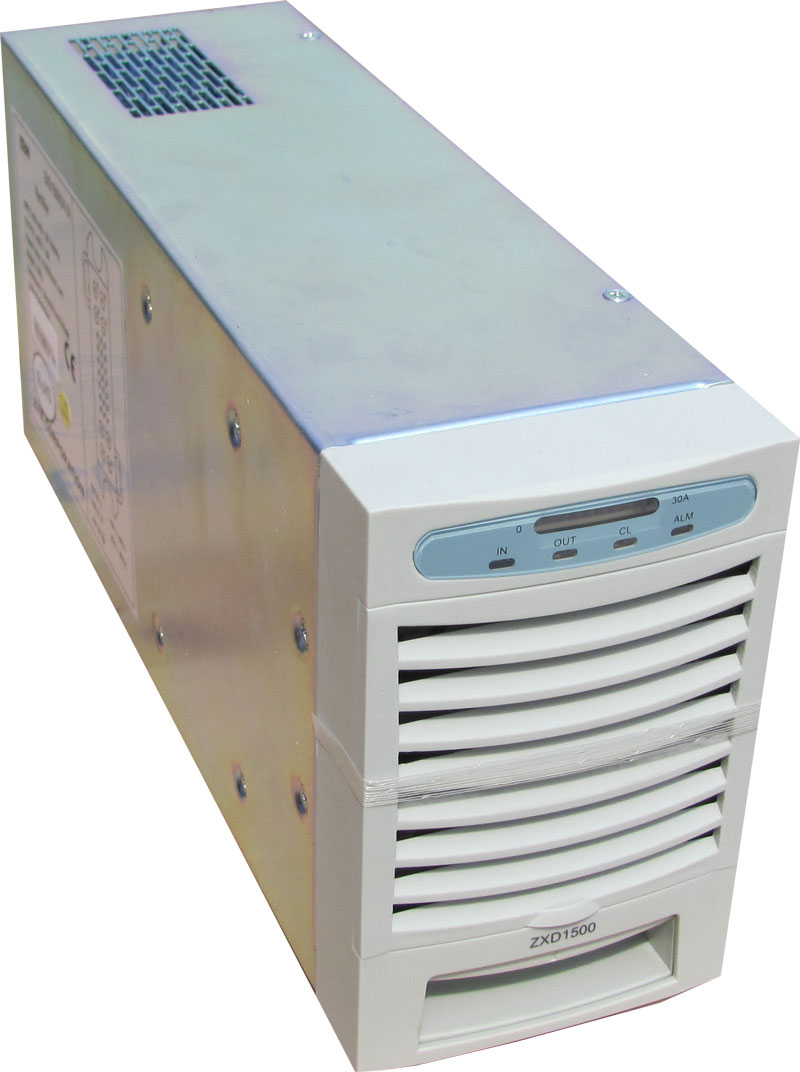

AC input

• Input mode Single-phase/three-line
• Input voltage: Rated output: 220V AC ,operating range: 80 ~ 300V AC
• Input frequency 45 Hz - 66 Hz
• Input current 10A (maximum)
• Efficiency ? 93%
• Input power factor: 0.99

DC output

• Output power: Rated output power:1500 W;
• Maximum output power: 1800 W
• Output voltage: Rated output: 48 Vdc, , adjustable range: -42V DC ~ -58V DC

Others

• Operating temperature: –40°C ~ 70°C
• Dimensions 134 mm × 87 mm × 290 mm (H x W x D)
• Weight 3.5 kg

Applicable standards

• Electrical safety IEC60950-1

EMC

• ETSI EN300
• EN61000-6-1(immunity, light industry)
• EN61000-6-2(immunity, light industry)
• EN61000-6-3(emission, light industry)
• EN61000-6-4(immunity, light industry)
