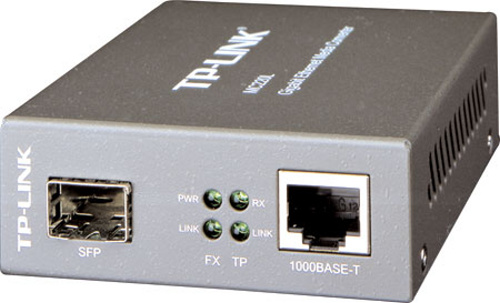

Media converter/converter TP-LINK, MC220L, 1.25 Gbps, SFP

MC220L is a media converter designed to transfer media from 1000Base-SX/LX/LH to metallic lead 1000Base-T and vice versa. The MC220L converter, which was designed according to IEEE802.3AB 1000BASE-T and IEE802.3Z 1000BASE-SX/LX/LH, is designed for use with a multi-form/one-year optical cable with a SC/LC connector.

Other functions of this module include the possibility of using a separate device (no chassis) or the TP-Link 19 'chassis, MDI/MDI-X automatic detection for TX port and status LED lights on the front panel. The MC220L module allows data transmission using a multire-optical cable at a distance of up to 0.55 km and using a one-resistant optical cable to 10 km.

supports a speed of 1,000 Mbit/s in fully duplex mode for port TX and fx.

supports automatic MID/MID-X detection for TX port.

allows you to configure the forced/automatic transmission mode for port FX.

Port FX supports replacement for operation.

extends the range of optical lines up to 0.55 km for a multi-form optical cable and to 10 km on a single-year optical cable.

Well visible LEDs allow monitoring network activity.

External power supply 9V/0.6A

parameters

name	value
Power:	9 V/0.8 and
standards:	IEEE 802.3AB, IEEE 802.3z
operating temperature (° C)	0 to 50
Better speed:	1000 Mbps
Rinse (mm):	94.5 x 73 x 27
Weight (g):	500
Connector:	SFP, RJ45
