MikroTik RouterBOARD LHGR\u0026R11e-LTE6, LHG LTE6 kit

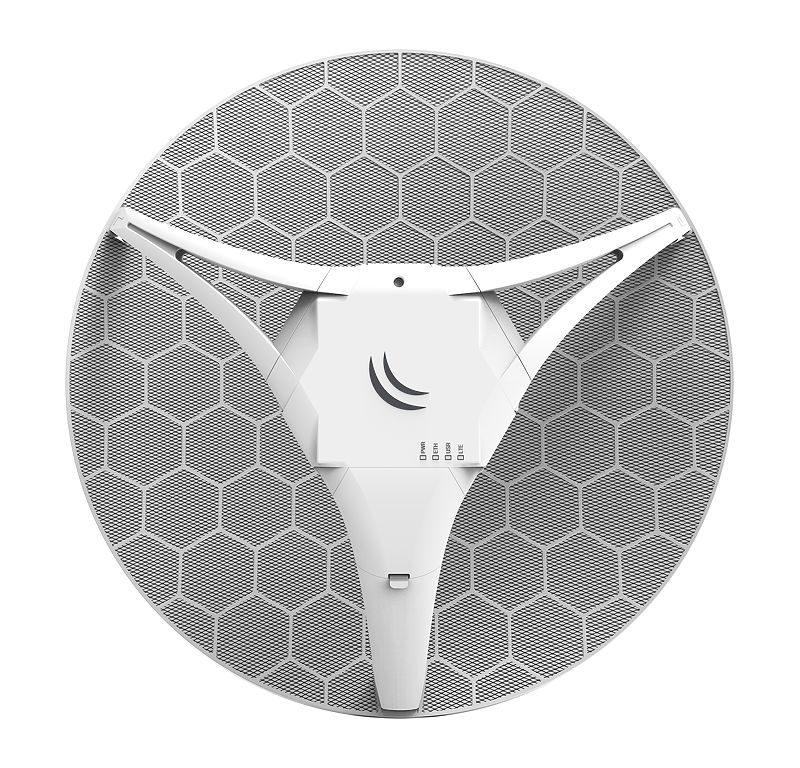

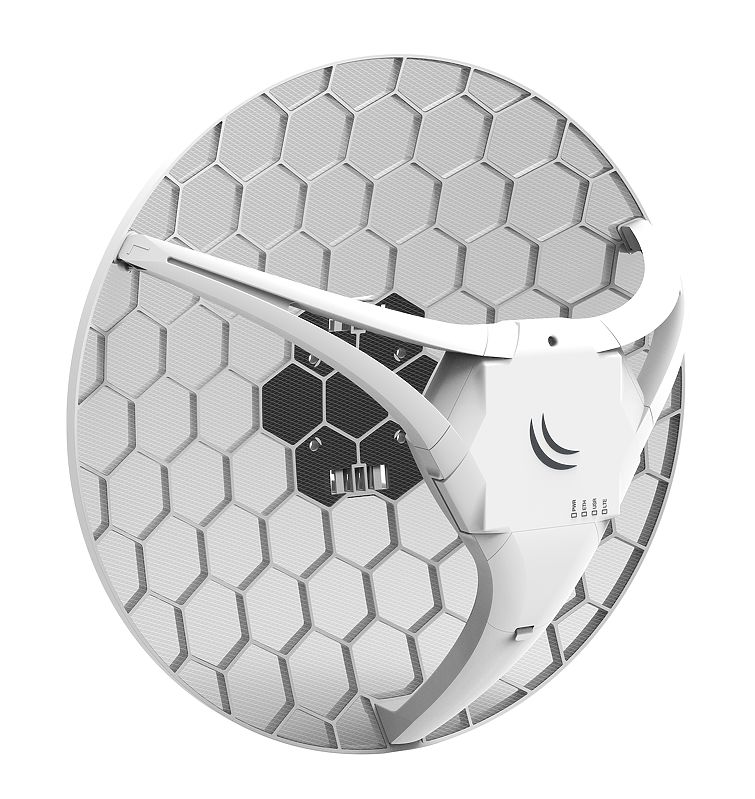

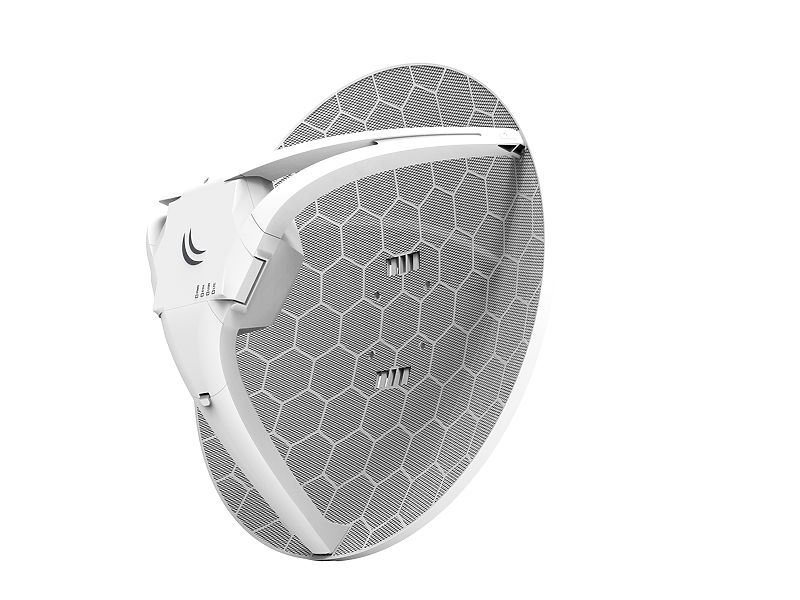

LHG LTE6 KIT is a device to connect to a mobile 2G/3G/4G/LTE network . Put it outside on a mast or at any high place and connect where they don't have a signal. Thanks to the large high profit antenna, the device can connect to the transmitters even in extreme rural locations, allowing access to the Internet even in places where nothing else is available.

The unit is equipped with one Ethernet port, has a built-in high-quality category 6 modem for up to 300 Mbps download and 50 Mbps upload



parameters:

name	value
wireless frequencies:	lte
SPEED. angle in the azimuth plane (-6 db)[°]:	25
SPEED. Angle in elevation plane (-6 db)[°]:	25
Antenna type:	built-in
Number of built-in antennas:	2
antenna profit[dbi]:	17
Integrated 4G/LTE radio part:	Yes
Supported 4G/LTE channels:	1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (12) 700 MHz, (41n) 2500 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz
version:	Outdoor
buttons:	Reset
operating temperature[° C]:	-40 to 60
Dimensions W x H x H (mm):	391 x 391 x 227
RAM[MB]:	64
CPU:	QCA9531
CPU Frequency[MHz]:	650
Number of CPU cores:	1
SIZE SIZE[MB]:	16
LAN speed:	1x 10/100 Mbps
Number of SIM slots:	1
Power type:	POE
POE types:	only poe-in
Power via POE:	802.3AF, 802.3at, 18 .. 57 in DC
Max. Energy consumption[W]:	6
Operational mode:	3G/4G router
operating system:	Routeros-L3
IPv6 support:	Yes

Package content

device

kit to attach to the mast

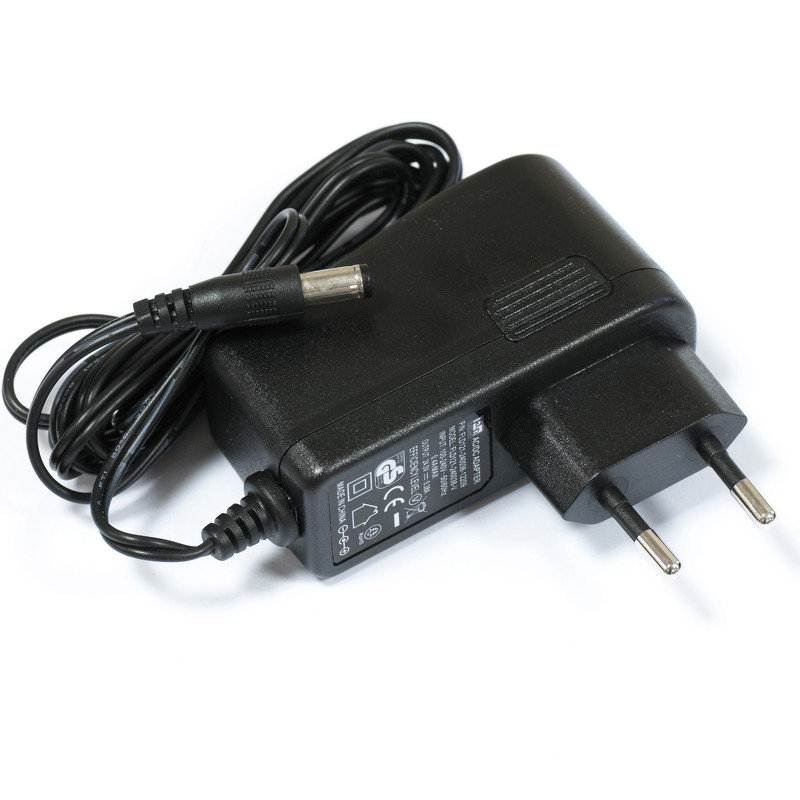

power adapter 24 V/0.38 and

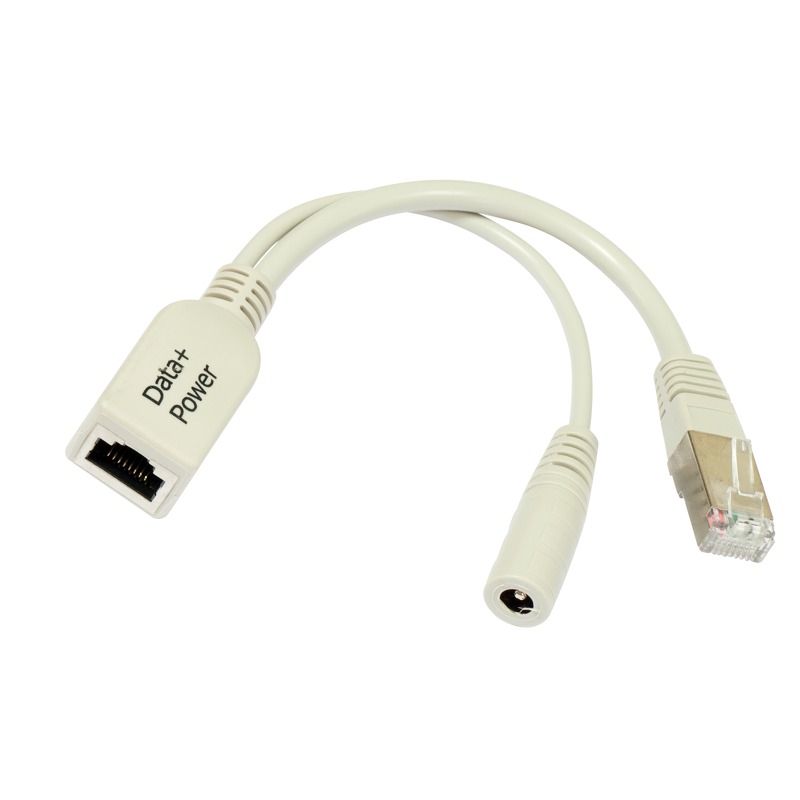

Poe injector

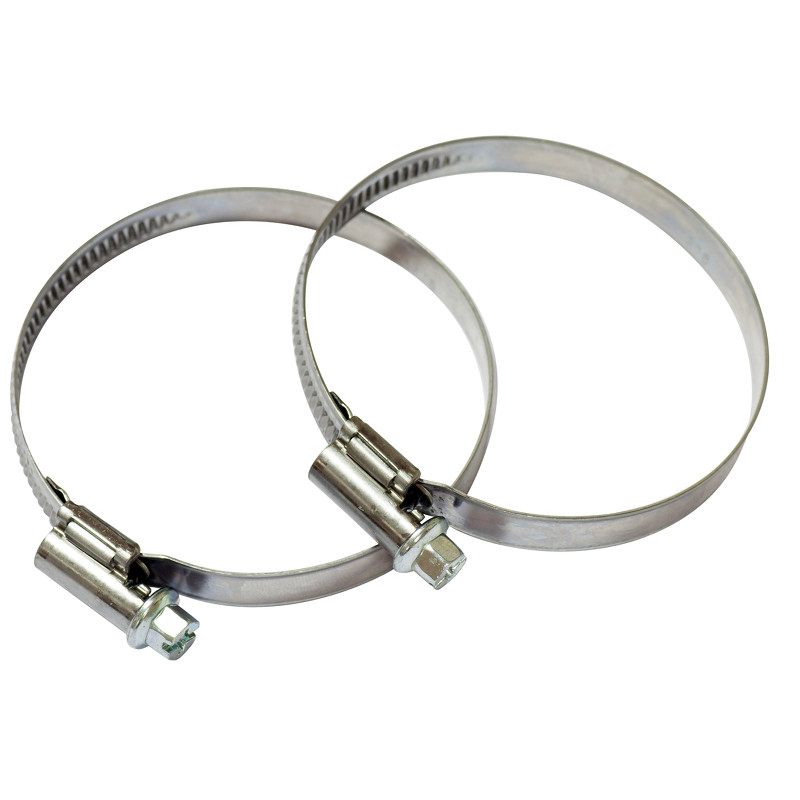

2x metal tightening strap.
