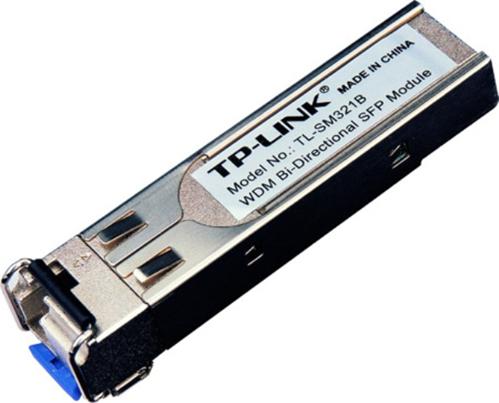

TP-LINK TL-SM321B, SFP module, WDM, 1Gbps, 10km, SM/LC

WDM technology allows two-way data transfer over one optical fiber. The module allows you to communicate at a speed of up to 1.25 Gbps at a distance of 10 km. The module is designed for inserting into the SFP slot Switche or Mediakonvertor MC220L and is powered directly from these assignmentsMore information

Producer

TP-LINK

Part No.

TL-SM321B

Code

90000330

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

17.91 EUR exc. VAT

VAT

21%

Your price inc. VAT

21.67 EUR inc. VAT

Ask for a better price

Description

Minigbic/SFP WDM module TP-Link SM321B serves as an expansion module for a device with SFP port. The module has 1 optical 1000Base-BX port for single-mode fiber 9/125um with 1 LC connector (Simplex). The length of the line can be a maximum of 10 km, the module uses a wavelength of 1310 nm and for reception of 1550 nm. The module power supply is through the device. The module suits Rohs. The module is not designed for CISCO and HP equipment-other modules must be used in these manufacturers' equipment.

ATTENTION: WDM modules must be used in pairs, ie and b //counterpart can be found in related products.

parameters

name	value
Speed:	1GBPS
Type:	SINGLE MODE
Output:	Optical
WDM:	Yes
wavelength:	tx \u003d 1550nm/rx \u003d 1310nm
Route length:	10km
Connectors:	1x LC

Parameters

Ethernet parameters
Compatibility with	TP-LINK
Wavelength (nm)	TX: 1310 / RX: 1550
SFP bit rate	1,25 Gbps
Optical parameters
Optical connector type	LC
Reach (km)	10
RX wavelength (nm)	1550 nm
Temperature Range	Commercial
Transmission type	1 thread (WDM)
TX wavelength (nm)	1310 nm
